Unleash a new level of performance with the El Mirage Heatsink. This is the ultimate cooling solution for your Bitaxe, delivering superior thermal dissipation that keeps your ASIC running cooler than ever before, all while allowing for whisper-quiet fan speeds.

The standout feature of the El Mirage is its revolutionary design that has been proven to provide better cooling than standard non-vapor tube models. Coupled with a four-point mounting system, it creates an exceptionally secure, rock-solid connection to the ASIC. This eliminates the instability and "rocking" common with two-point heatsinks, ensuring maximum contact and consistent cooling. Elevate your rig with the unparalleled performance and stability of the El Mirage.

Purchase comes with El Mirage heatsink and 4-m3 screws and locking nuts. This fits all bitaxe ultra/supra/gamma as well as nerdaxe ultra/gamma.

"How to" install video here: El Mirage Upgrade

Plebbase review here: El Mirage for Bitaxe

Key Features:

Exceptional Cooling: Proven design delivers superior thermal performance, keeping your ASIC cooler.

Secure Four-Point Mounting: Eliminates rocking and ensures a stable, secure connection to the ASIC.

Drastically Reduced Noise: Achieves elite cooling with significantly lower and quieter fan operation.

Premium Aluminum Construction: Sleek, durable, and built to complement your high-performance setup. Made of 6063 aluminum and is non-anodize

Wholesale pricing available!

Here are testing results using one of our white Bitaxe Gamma:

Frequency	Voltage	ASIC Temp	VR Temp	Fan Speed
525	1150	47.1	48	39%
600	1150	49.1	51	44%
625	1200	51.3	54	48%
625	1250	52.9	55	52%
700	1250	55.3	60	57%
750	1250	56.8	63	59%
800	1250	58	66	63%

Country/Region

Country/Region

DIY

Replacement Fuses for NerdQaxe+ & NerdQaxe++

El Mirage Performance Heatsink for Bitaxe

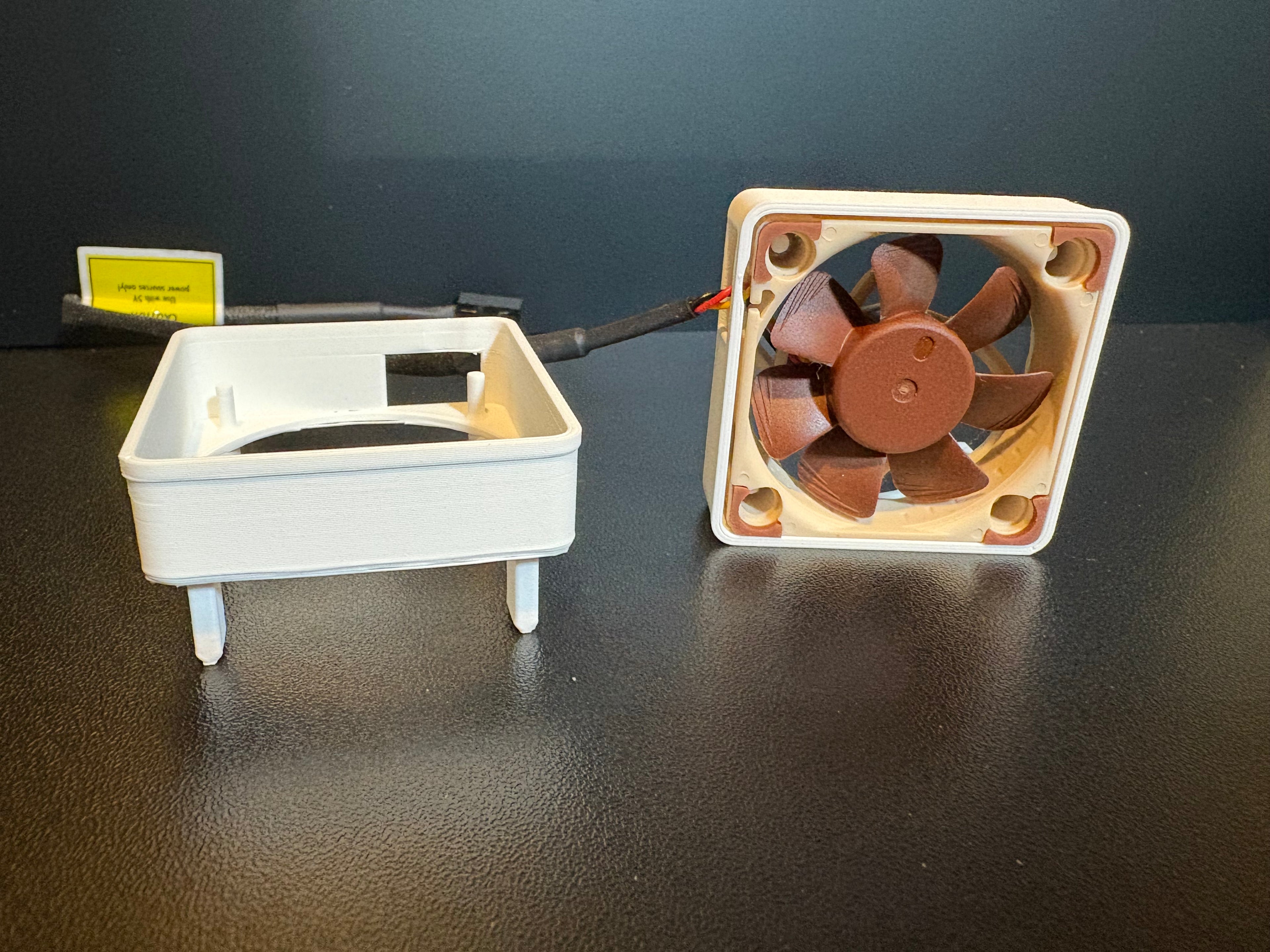

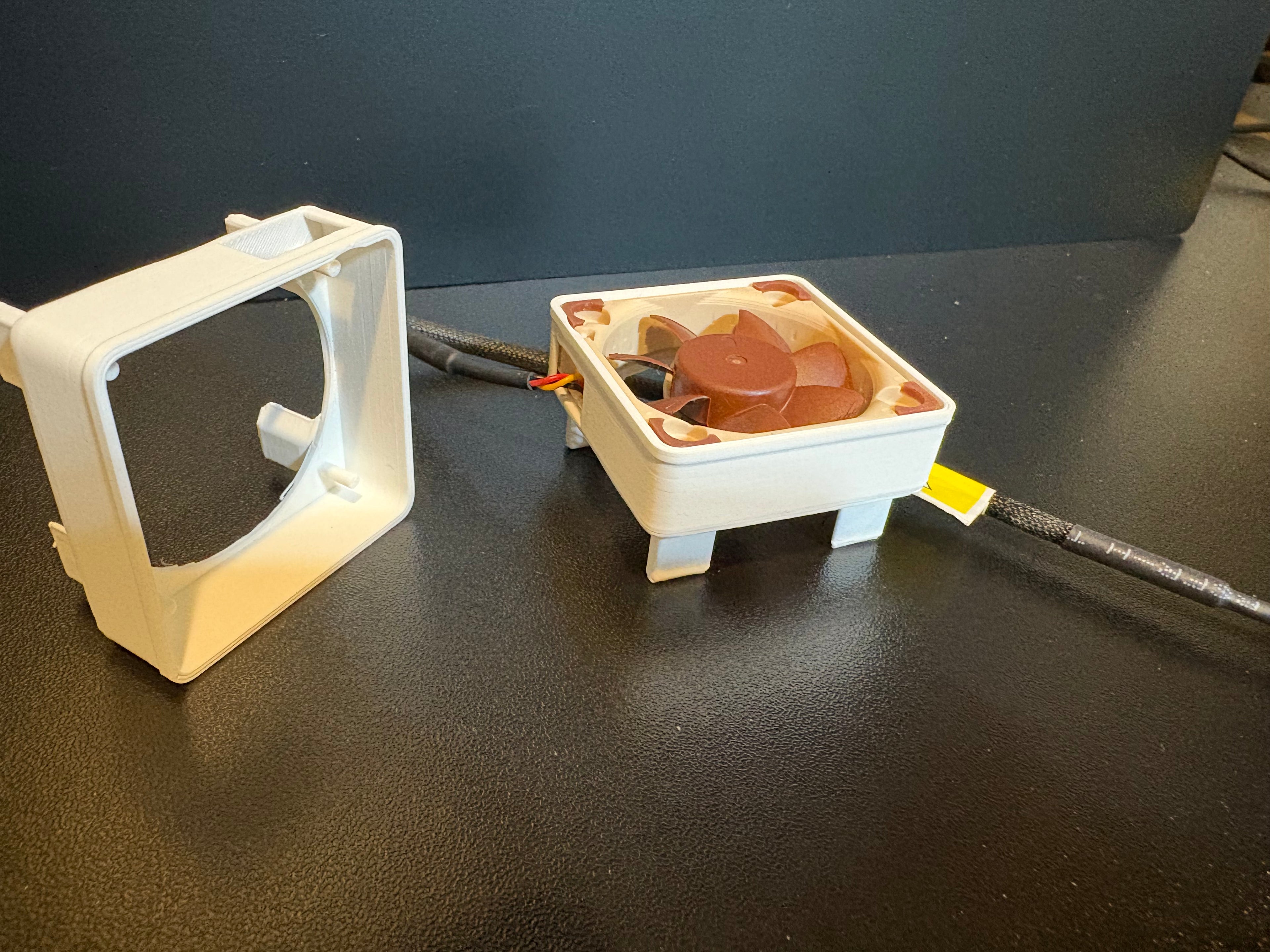

El Mirage fan holder: Noctua NF-AFx10

5v 6a Bitaxe Power Supply – Rock-Solid Power for Your Bitaxe

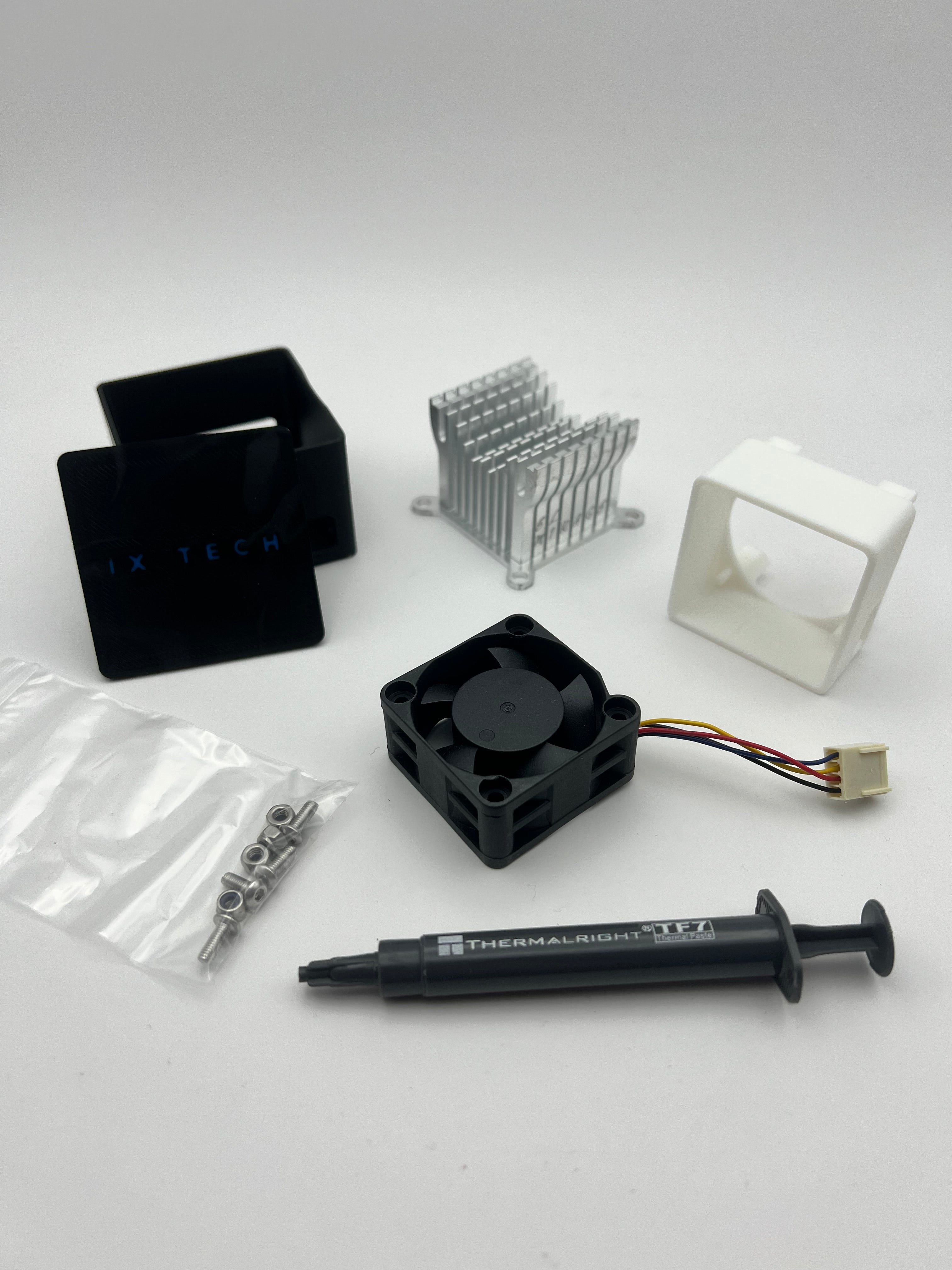

Complete Heatsink Upgrade Kit - Bitaxe & Nerdaxe single chip

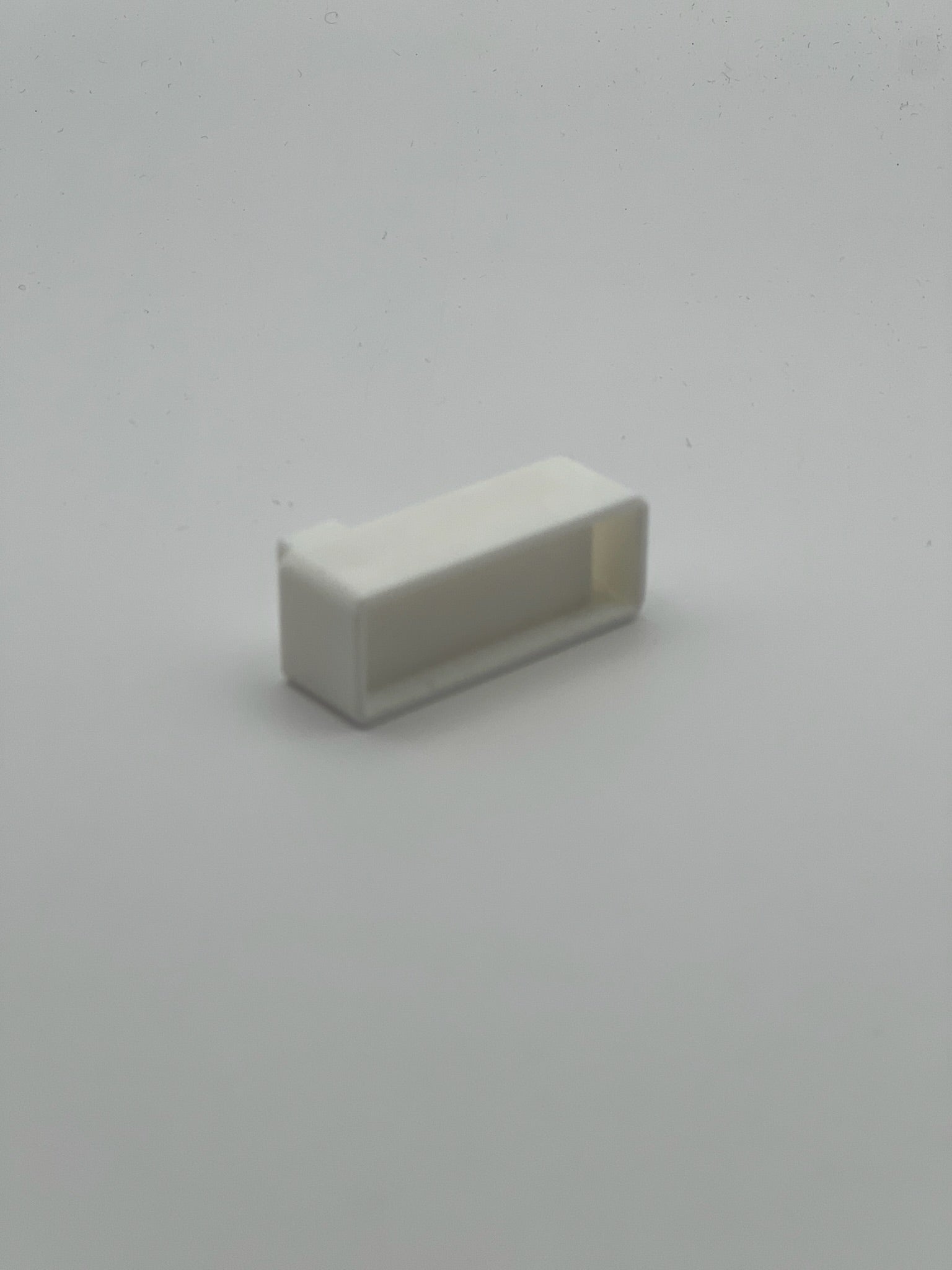

Bitaxe OLED Display Mount

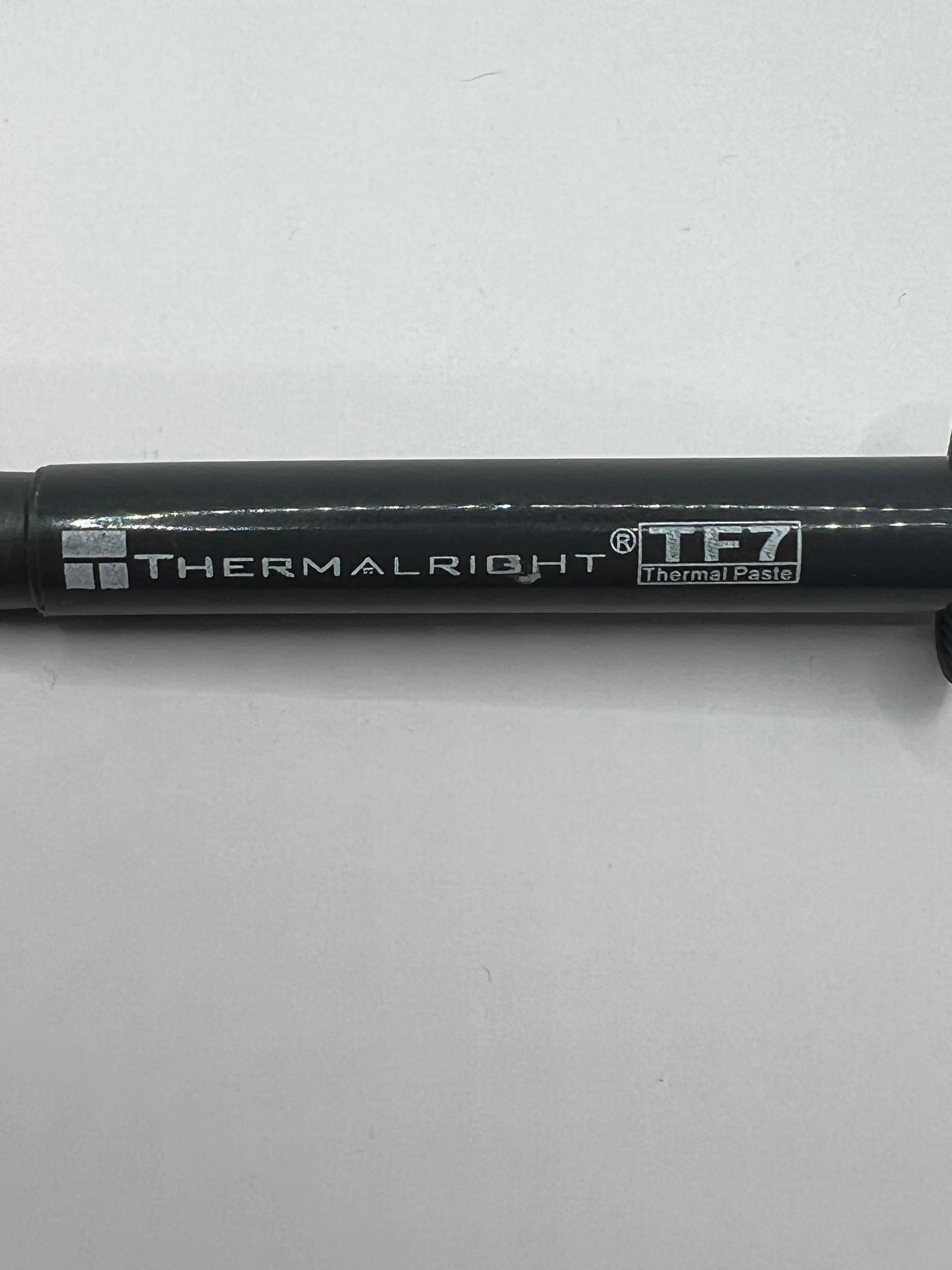

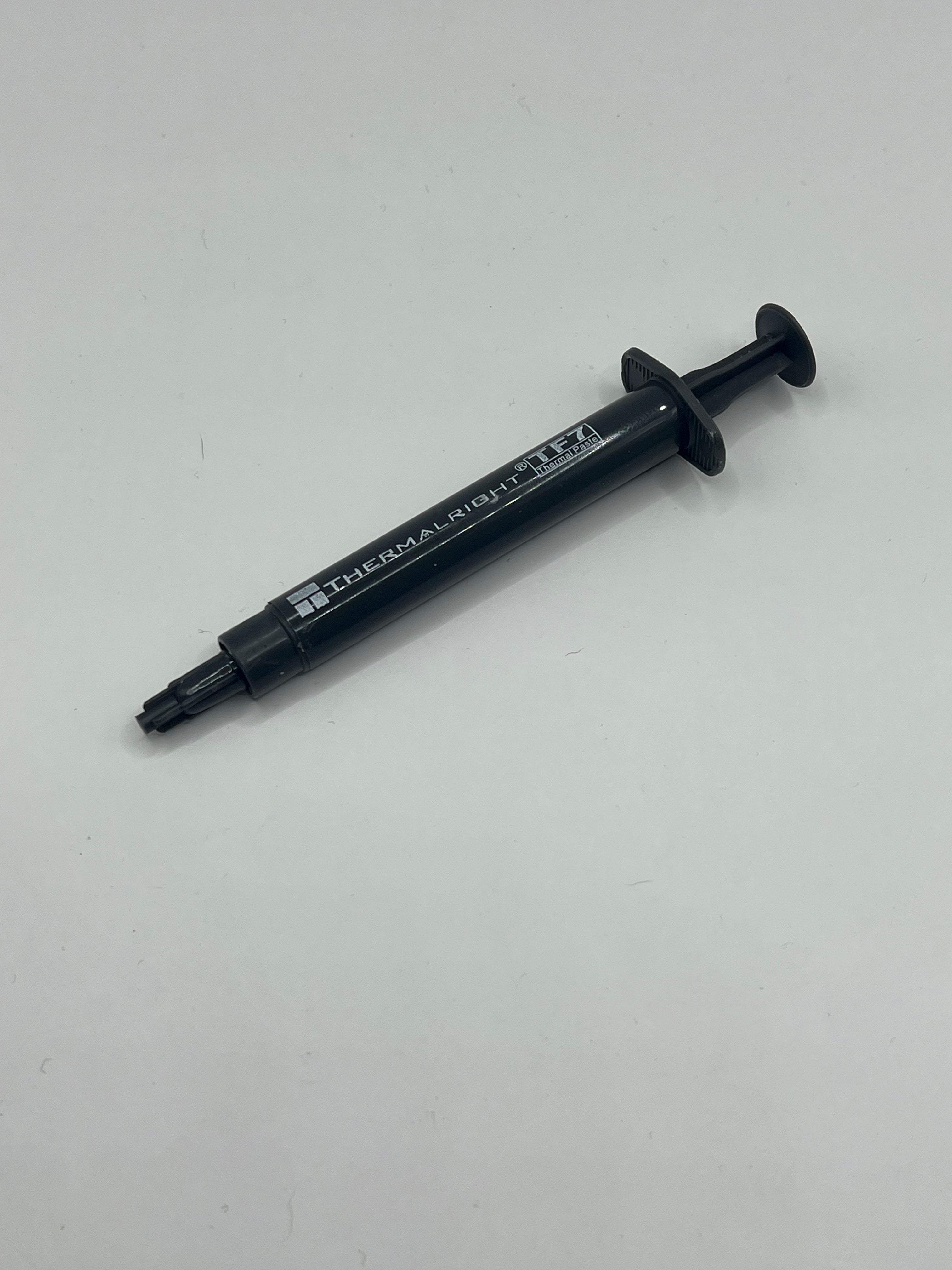

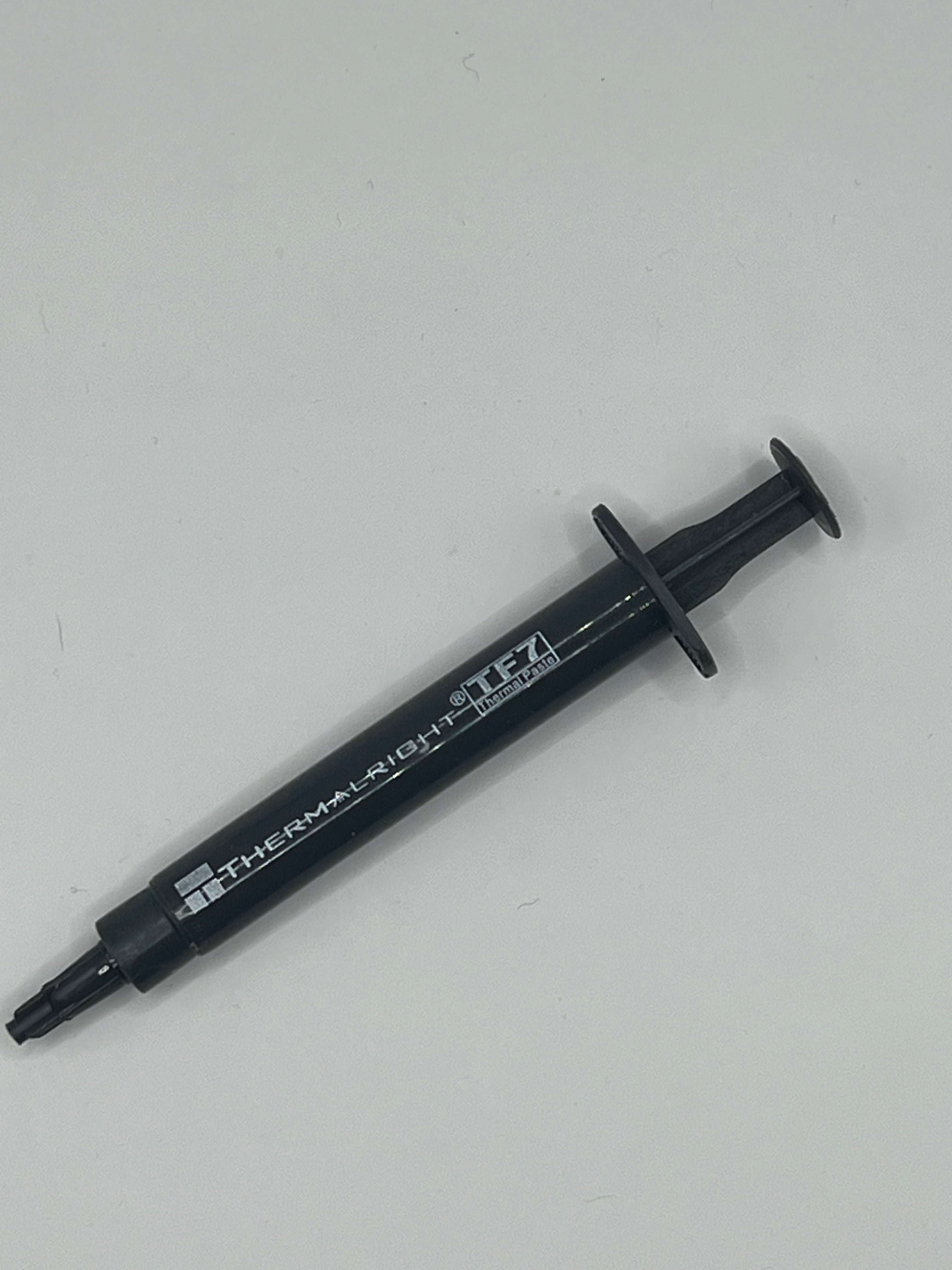

Thermalright TF-7 - 2Gram - Thermal Paste

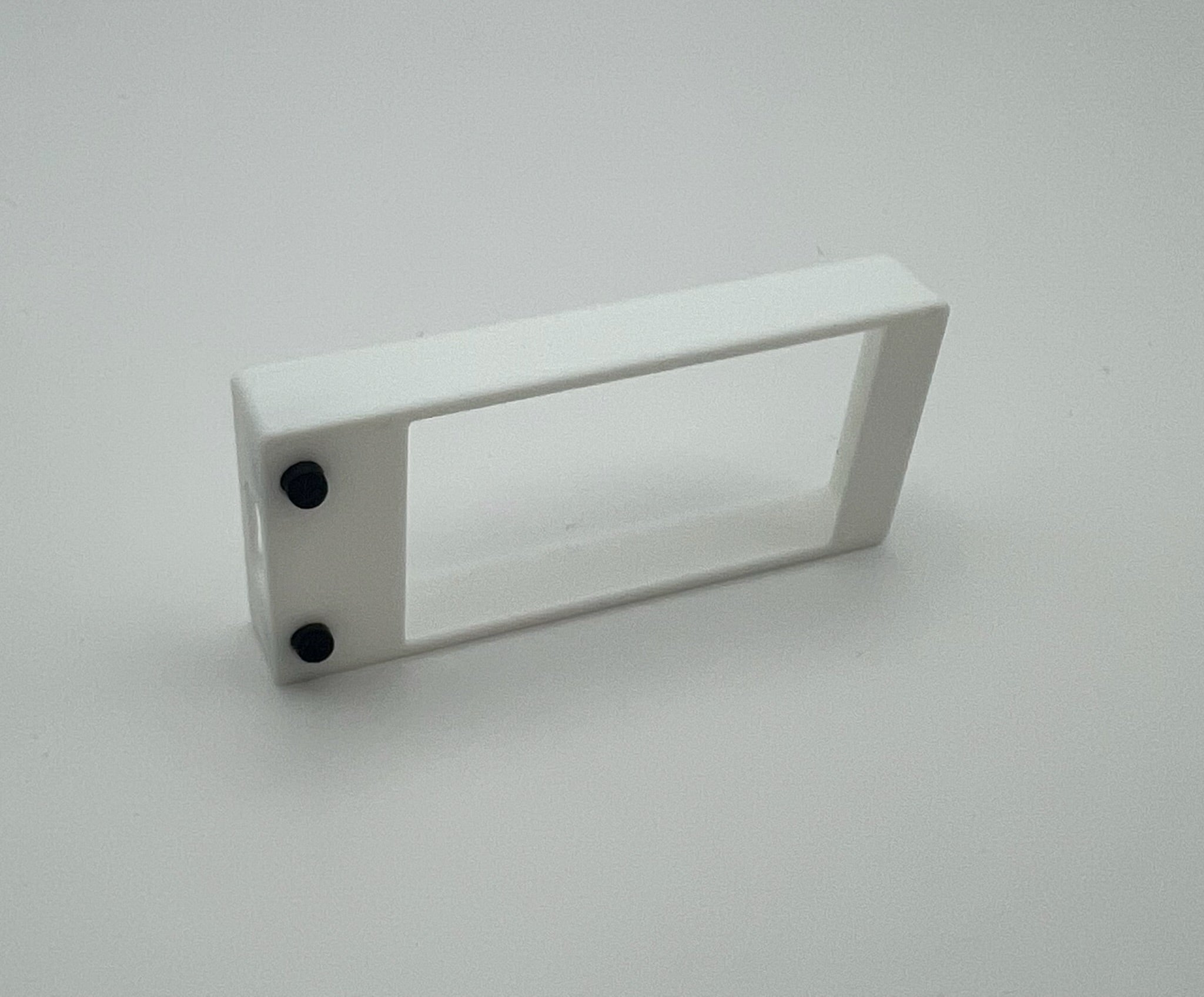

LILYGO T-Display S3 Cover

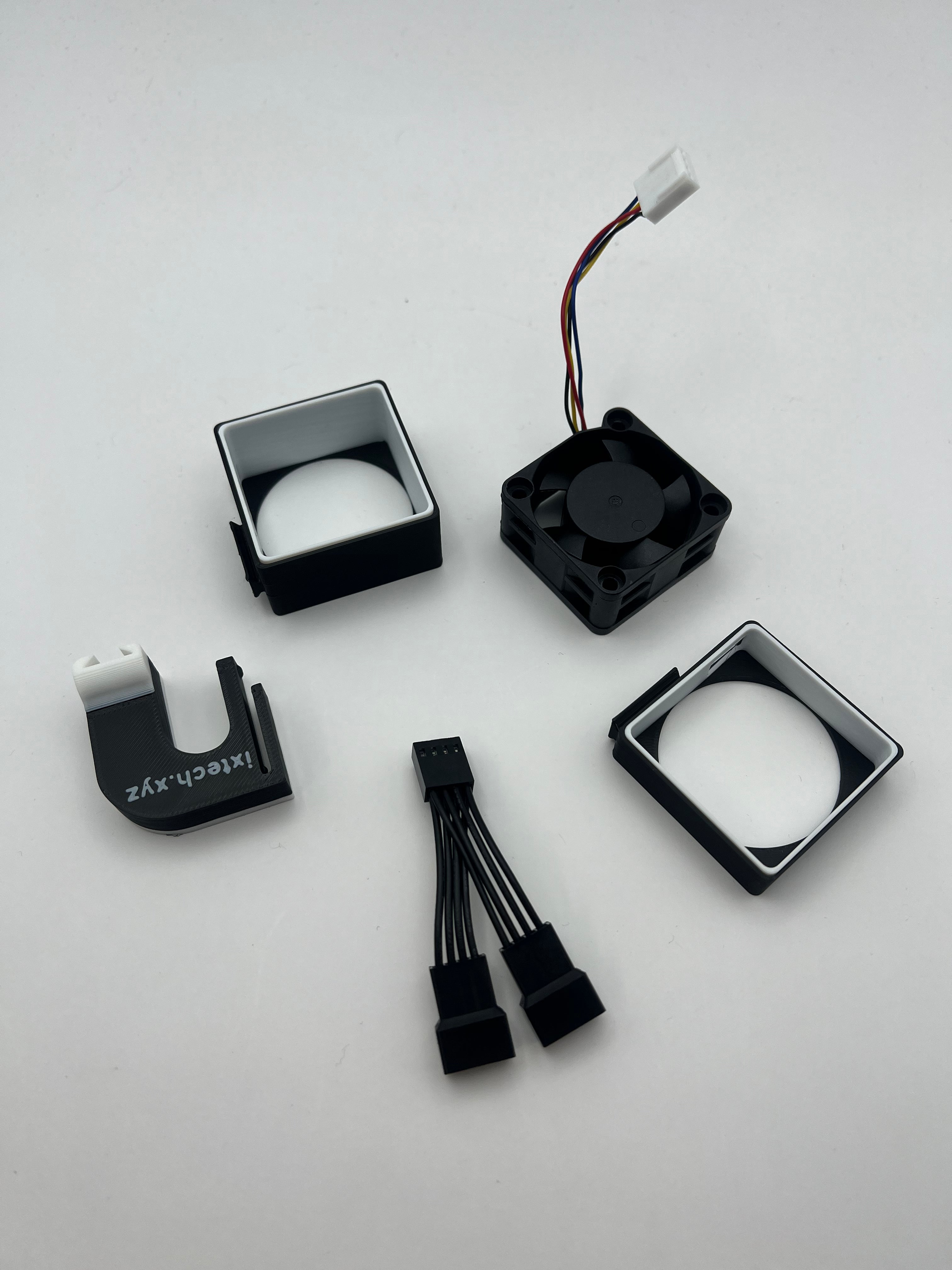

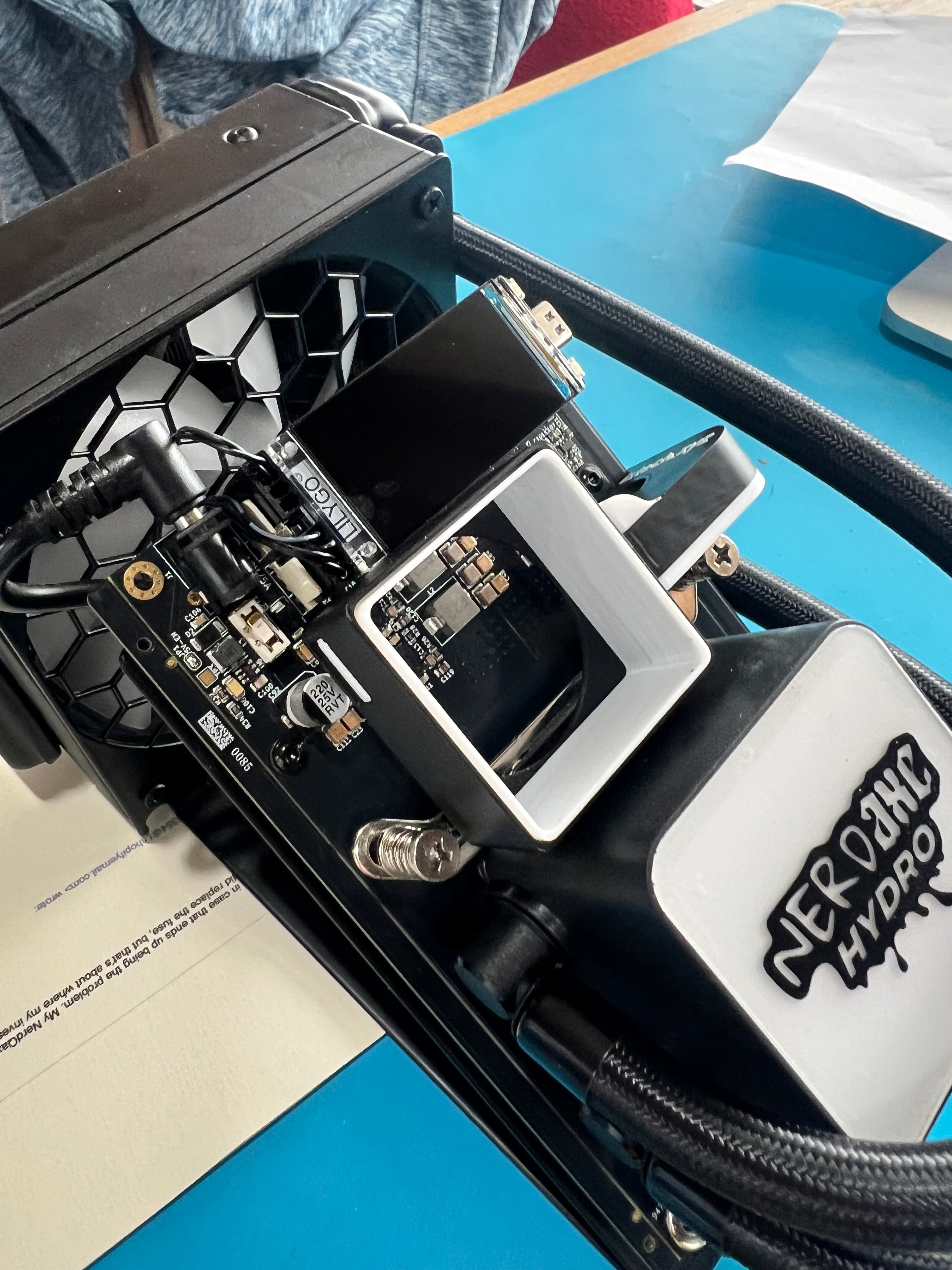

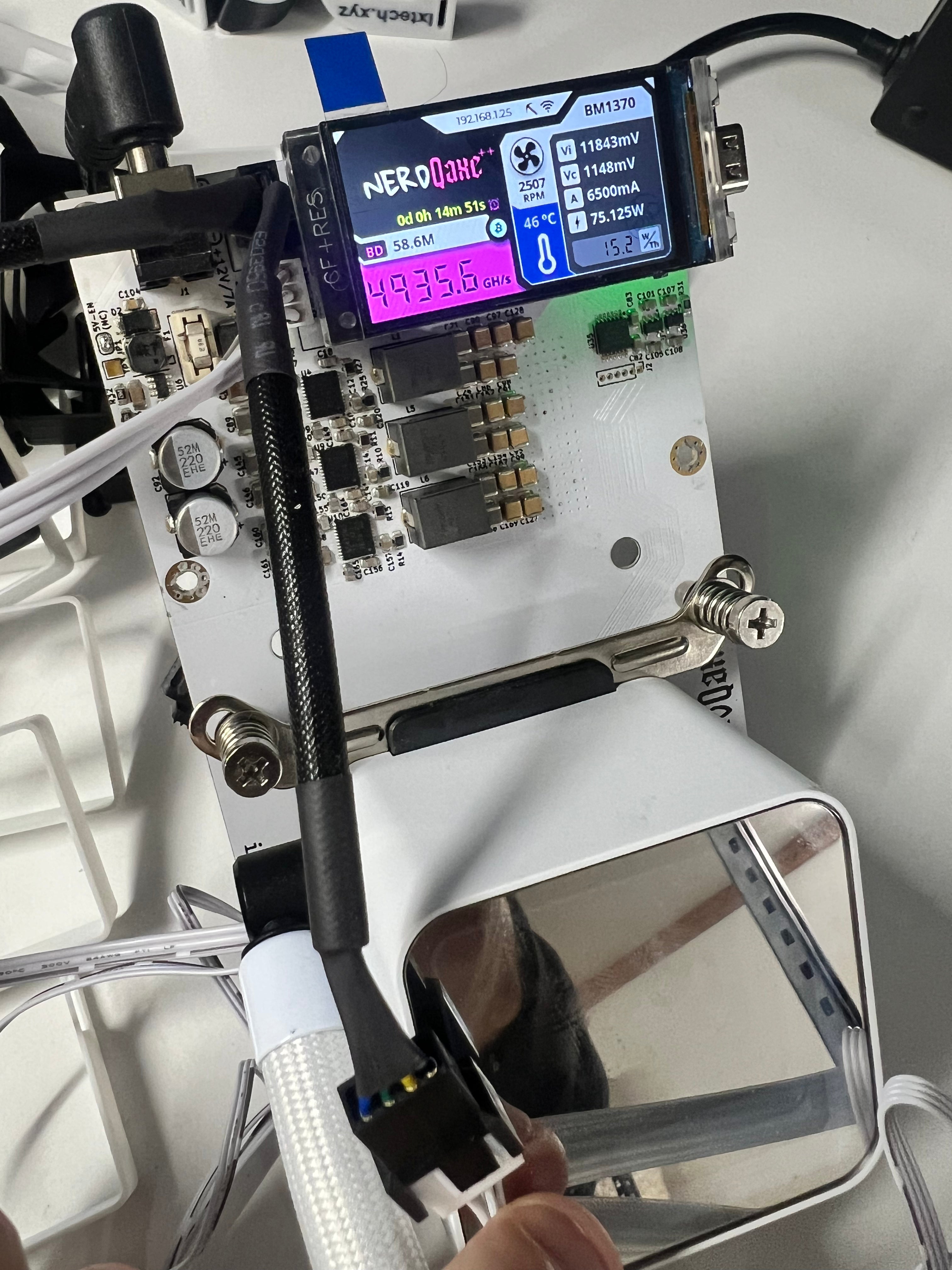

Nerdaxe QAxe Hydro VREG Active Cooling Kit (+ and ++)

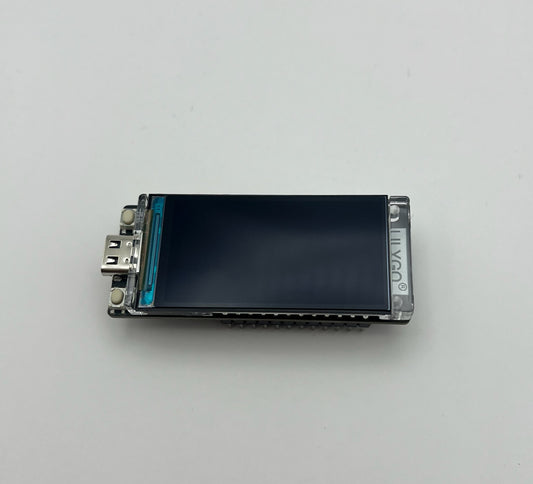

LILYGO T-Display S3

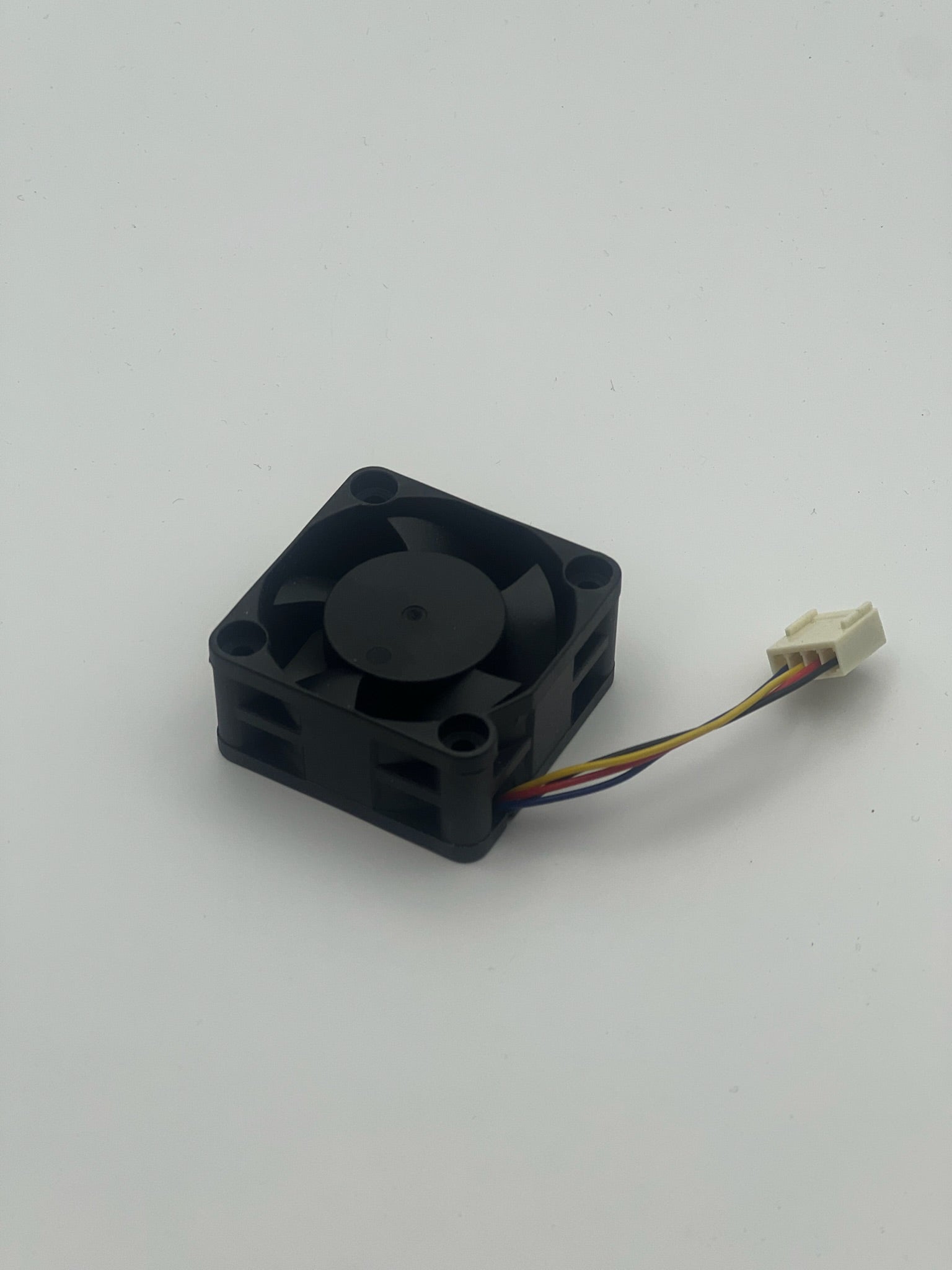

5v 40mmx20mm fan

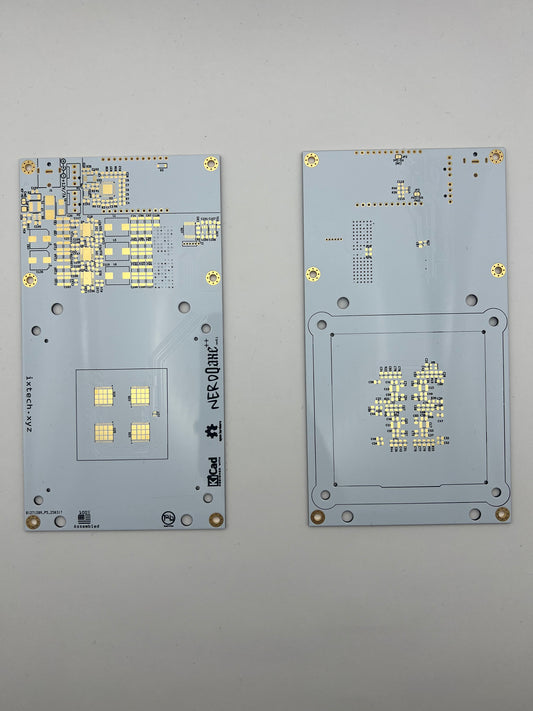

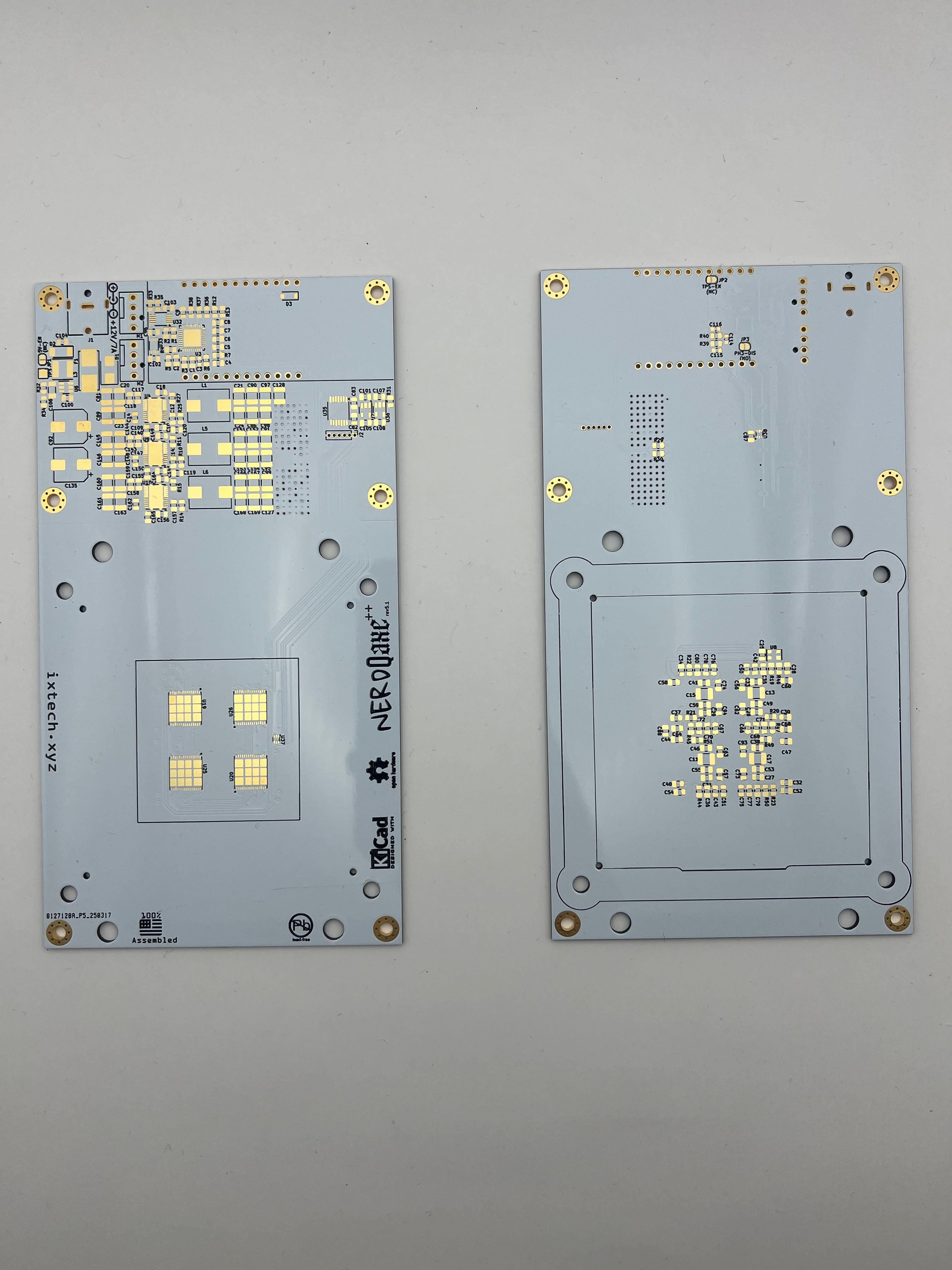

Nerdaxe QAxe++ - Bare PCB Boards

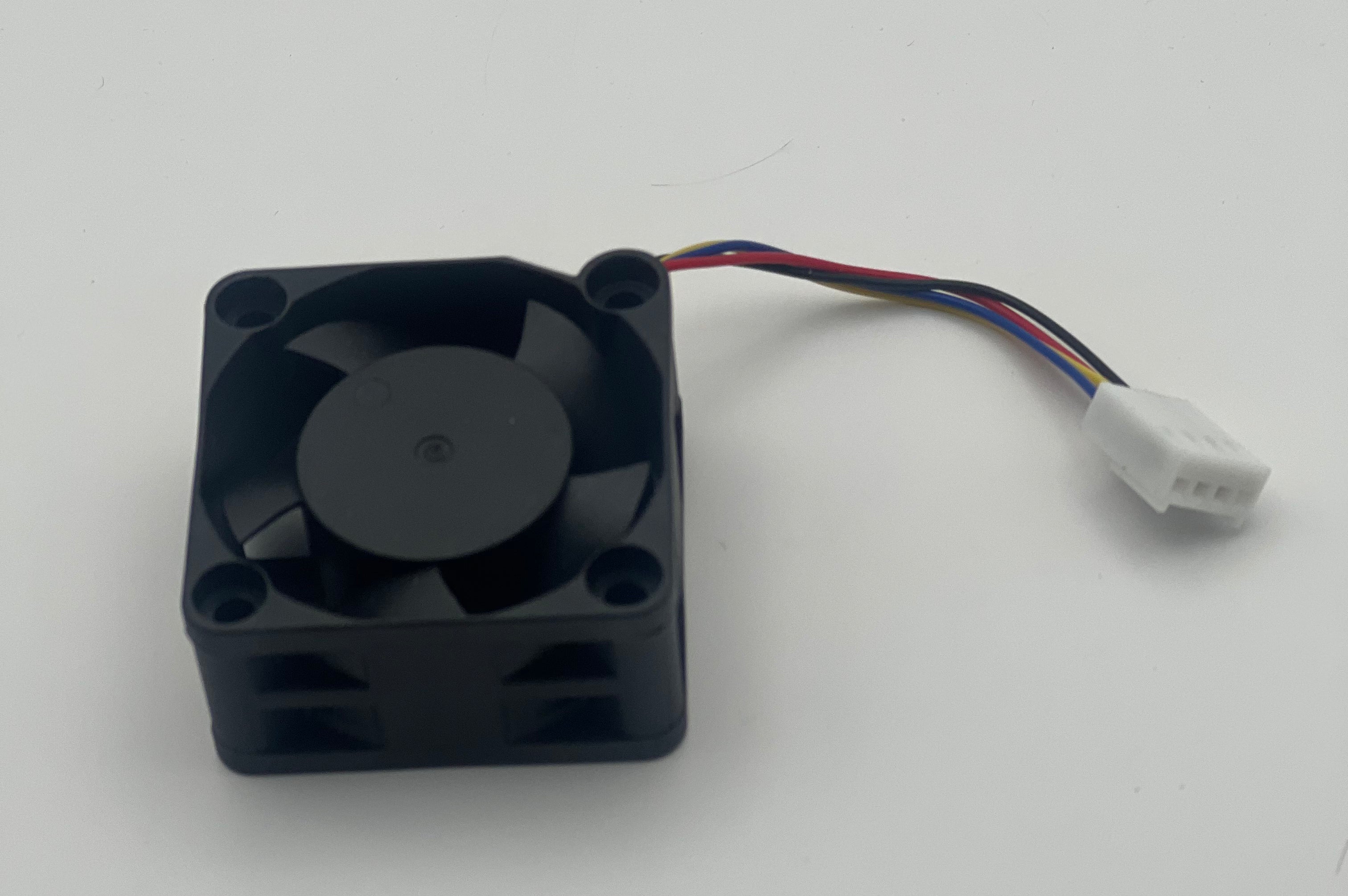

12v 40mmx20mm fan

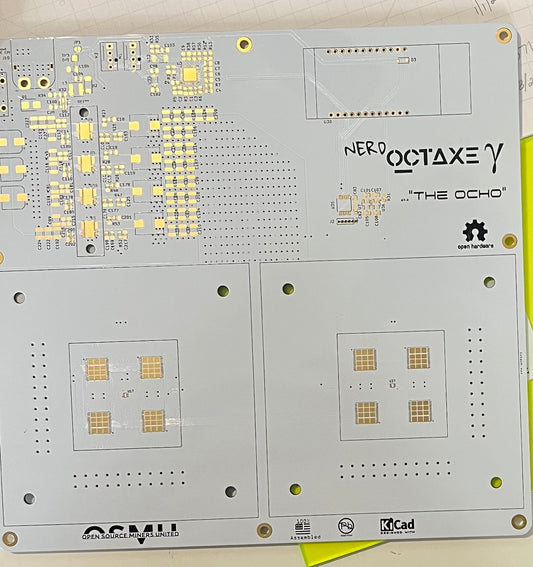

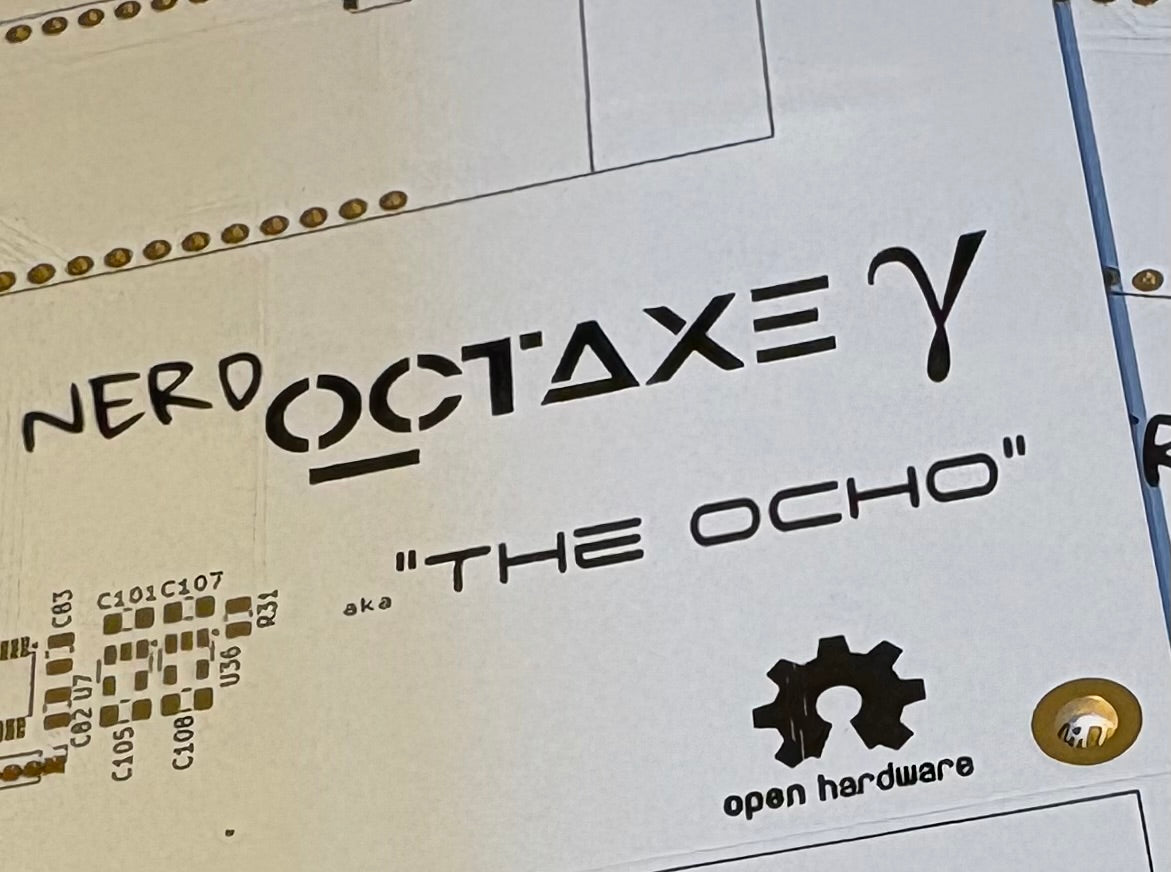

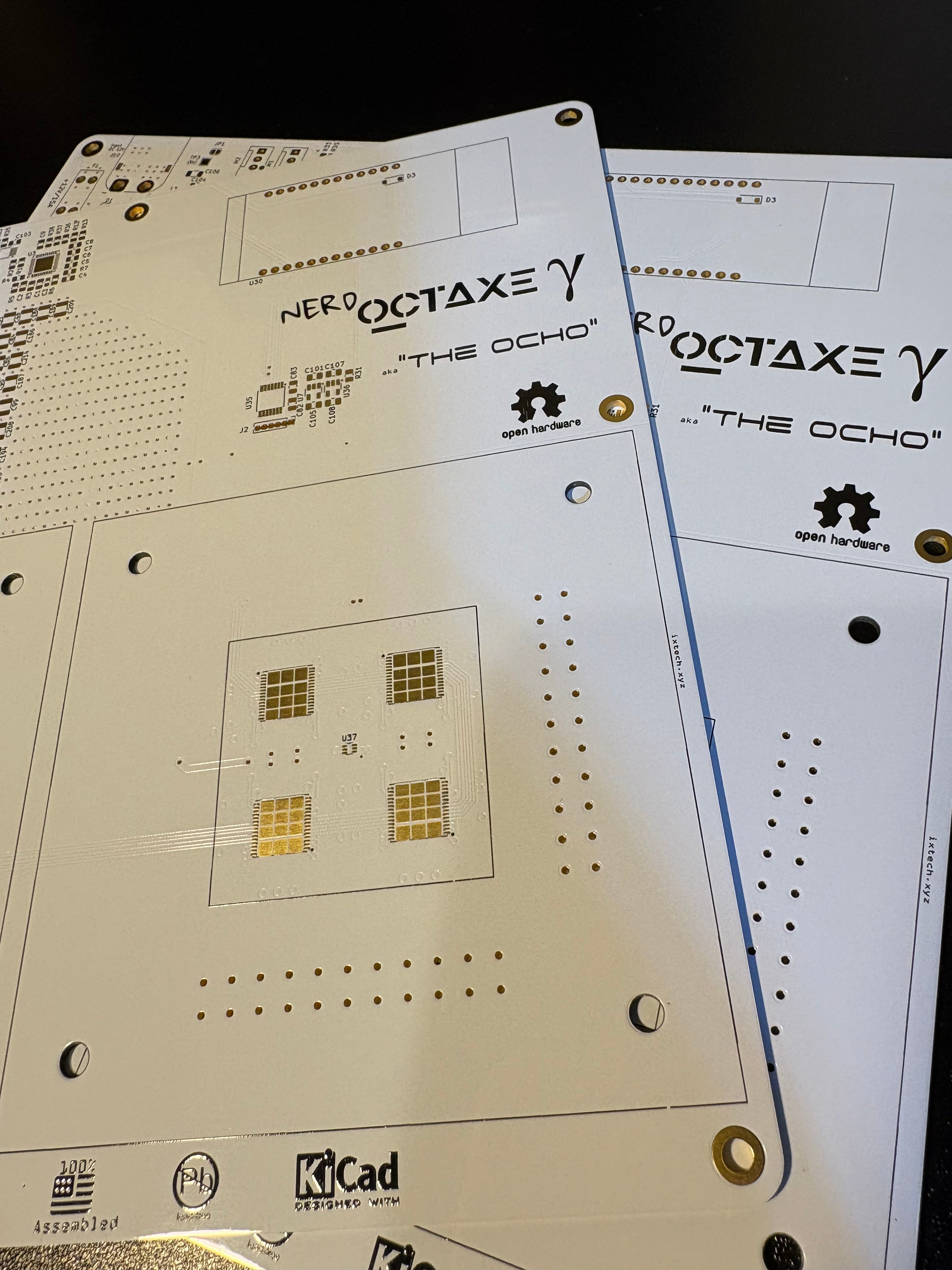

Nerdaxe Octaxe Gamma (The Ocho) - Bare PCB Boards (White)

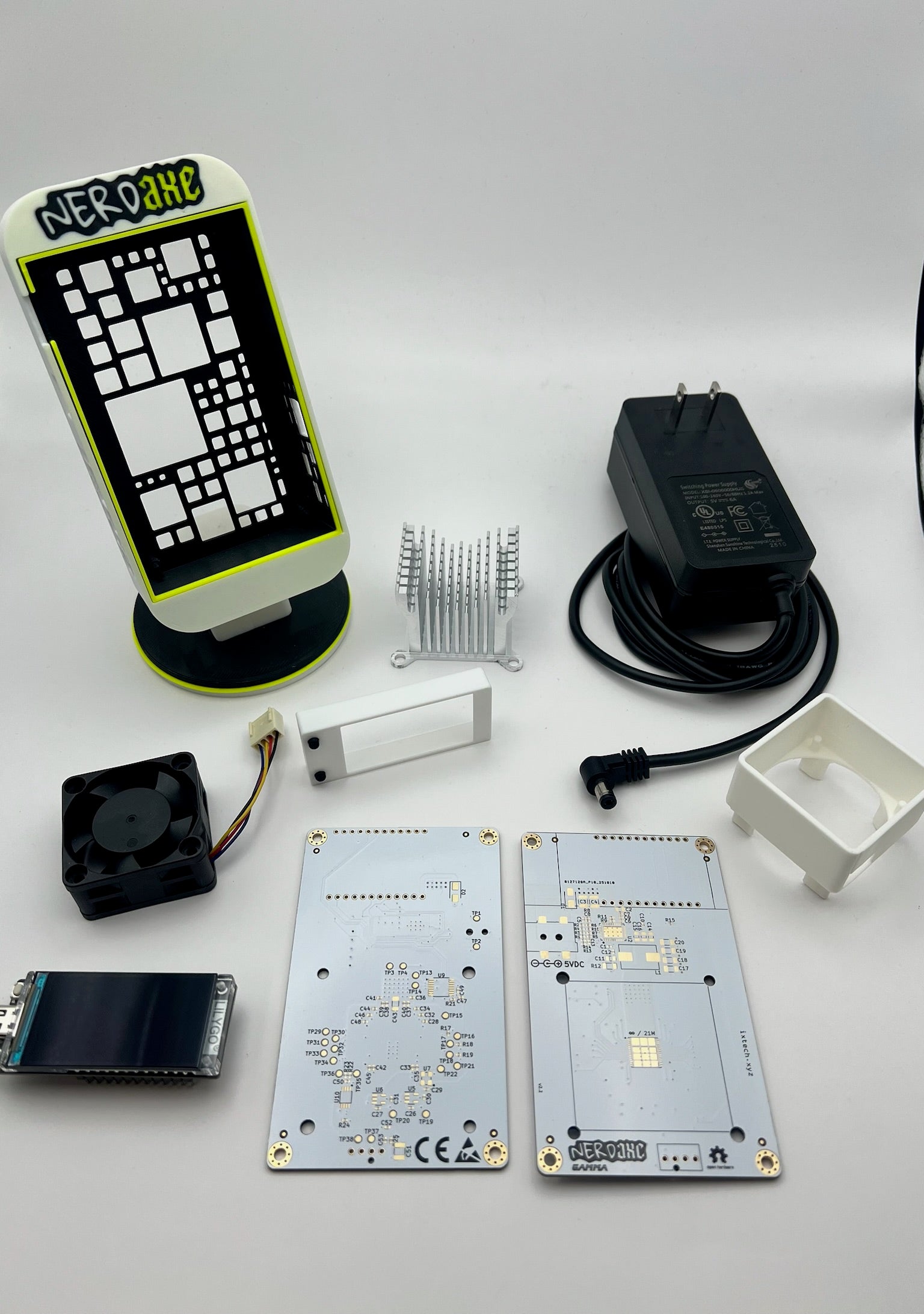

Nerdaxe Gamma v2.2 DIY Kit - White Edition

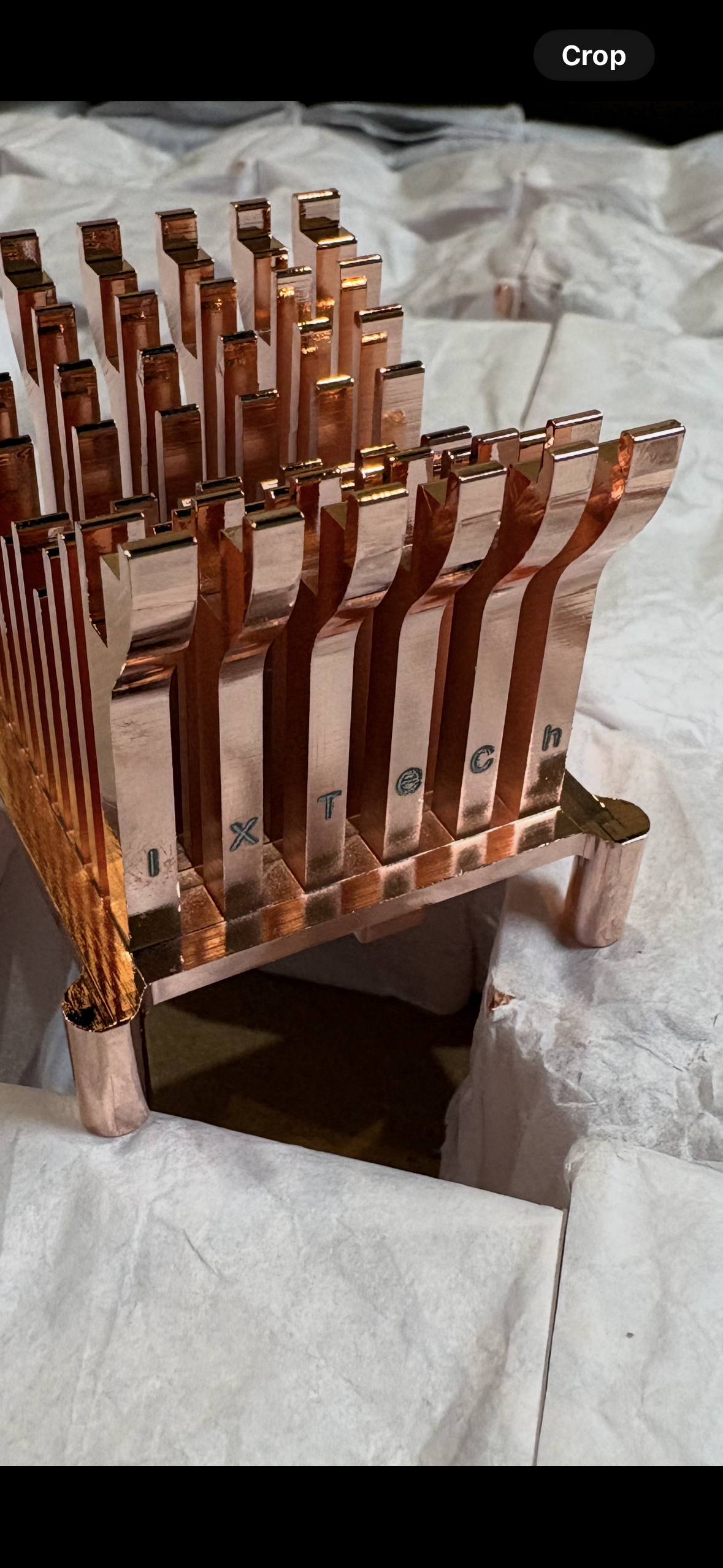

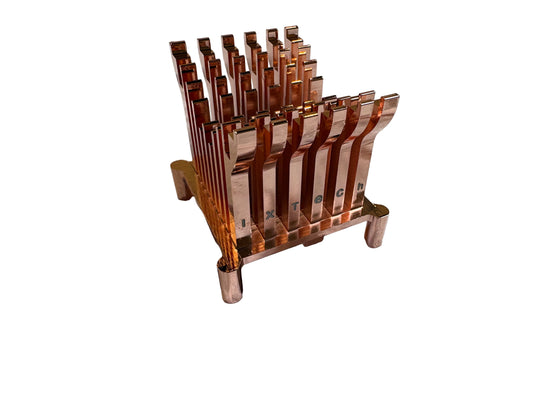

VREG Copper plated heatsink for NerdQX

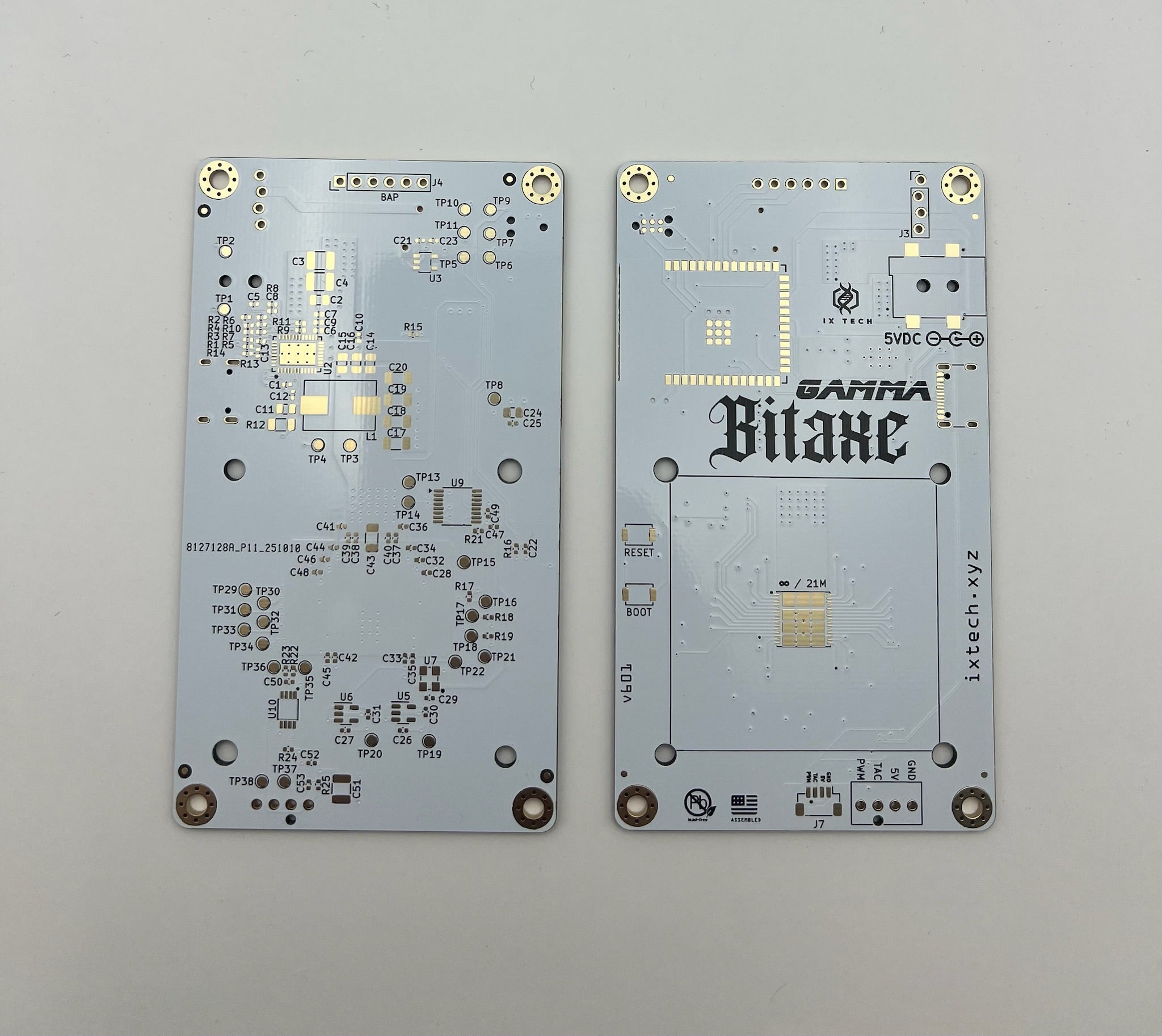

Bitaxe Gamma 601 - Bare PCB Boards (White)

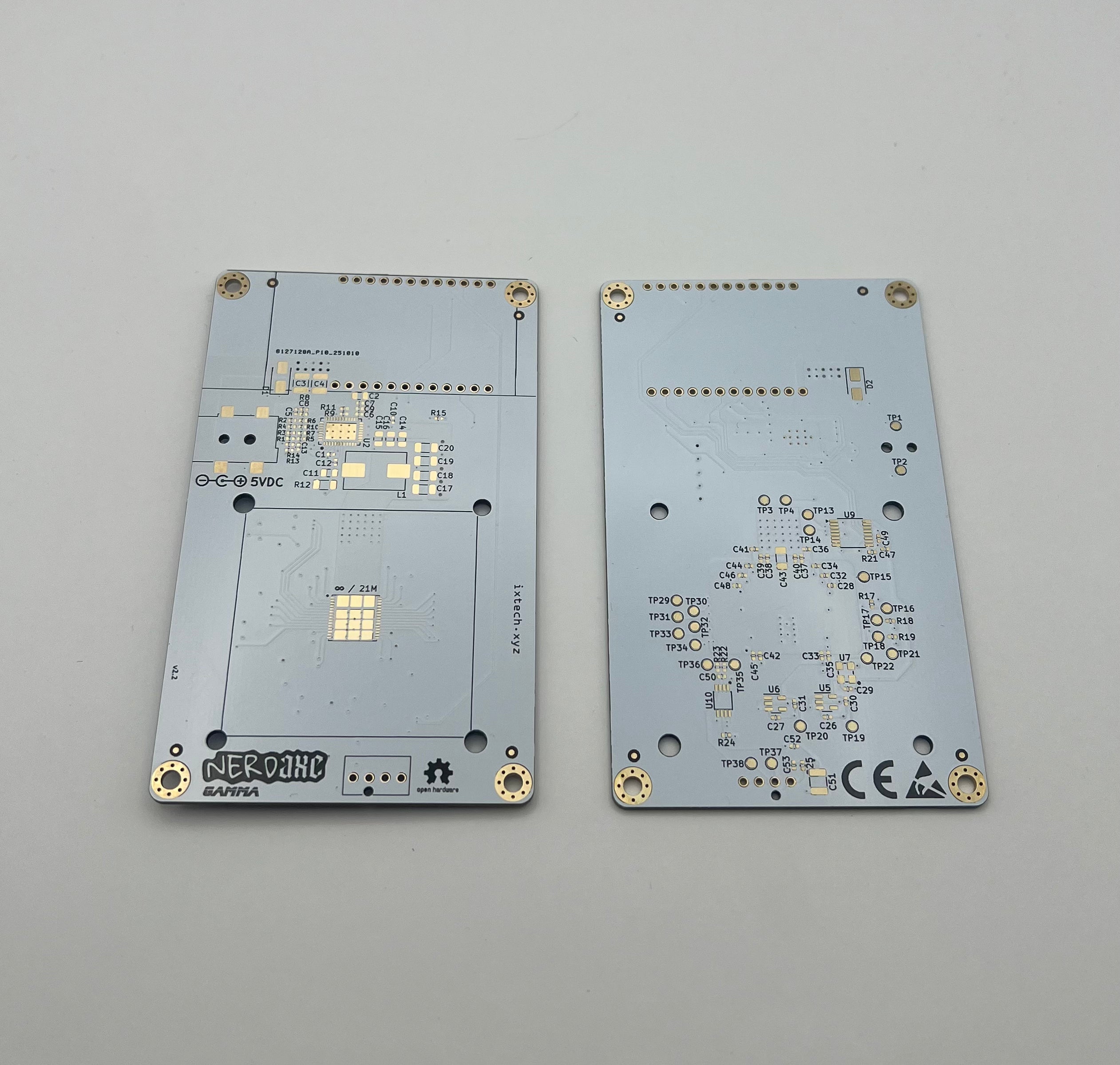

Nerdaxe Gamma v2.2-Bare PCB Boards (White)

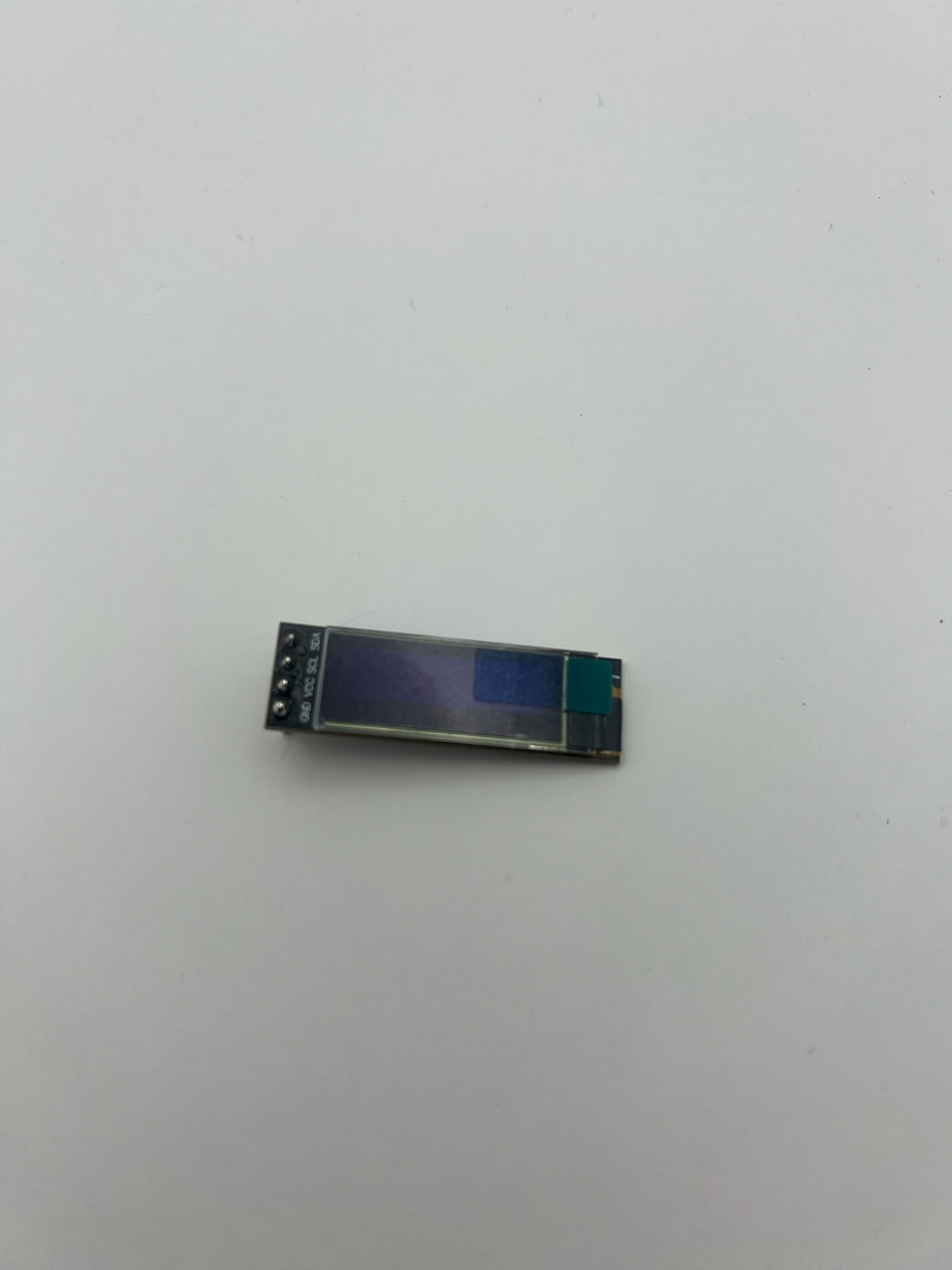

Bitaxe OLED Display Module

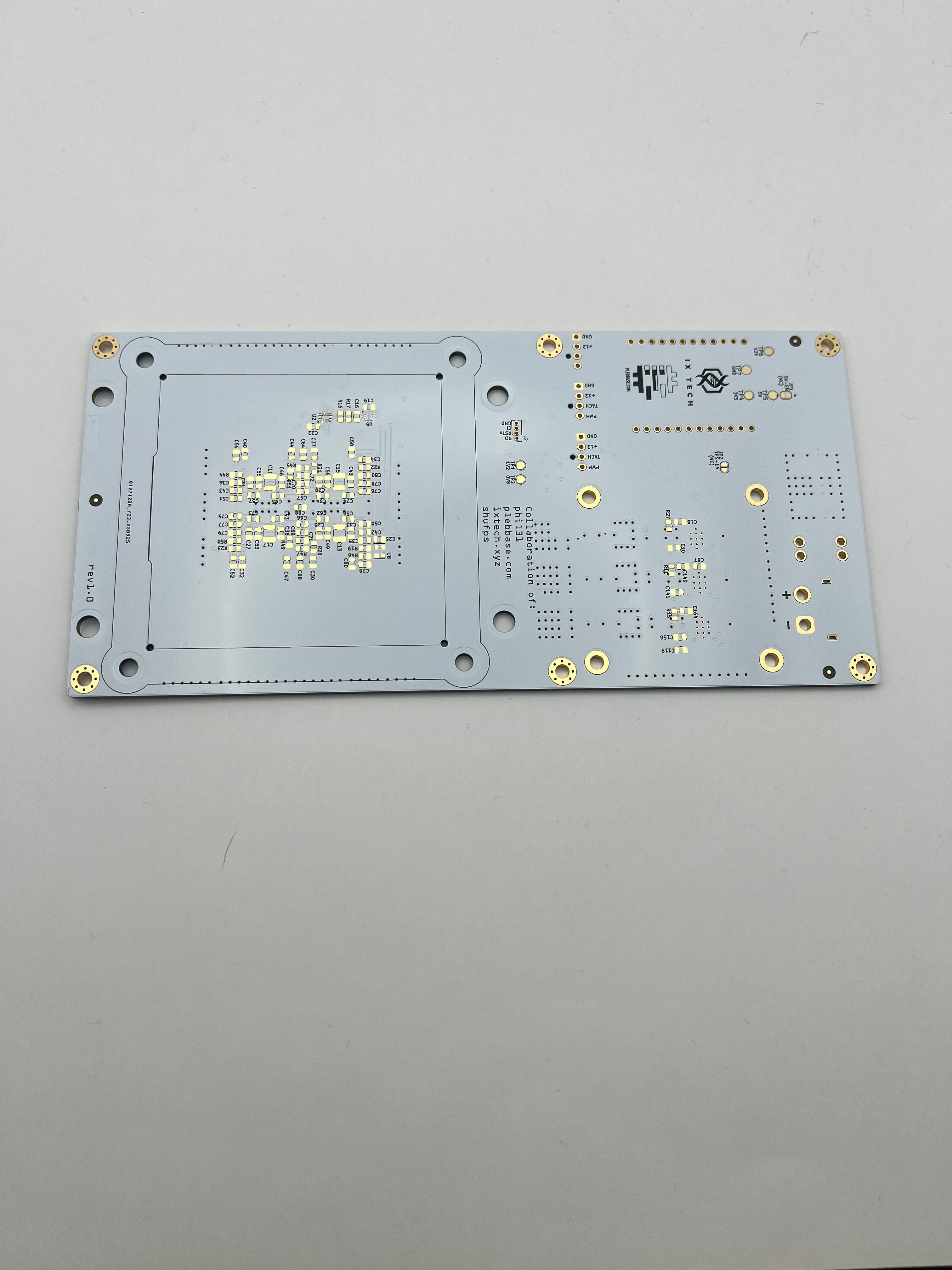

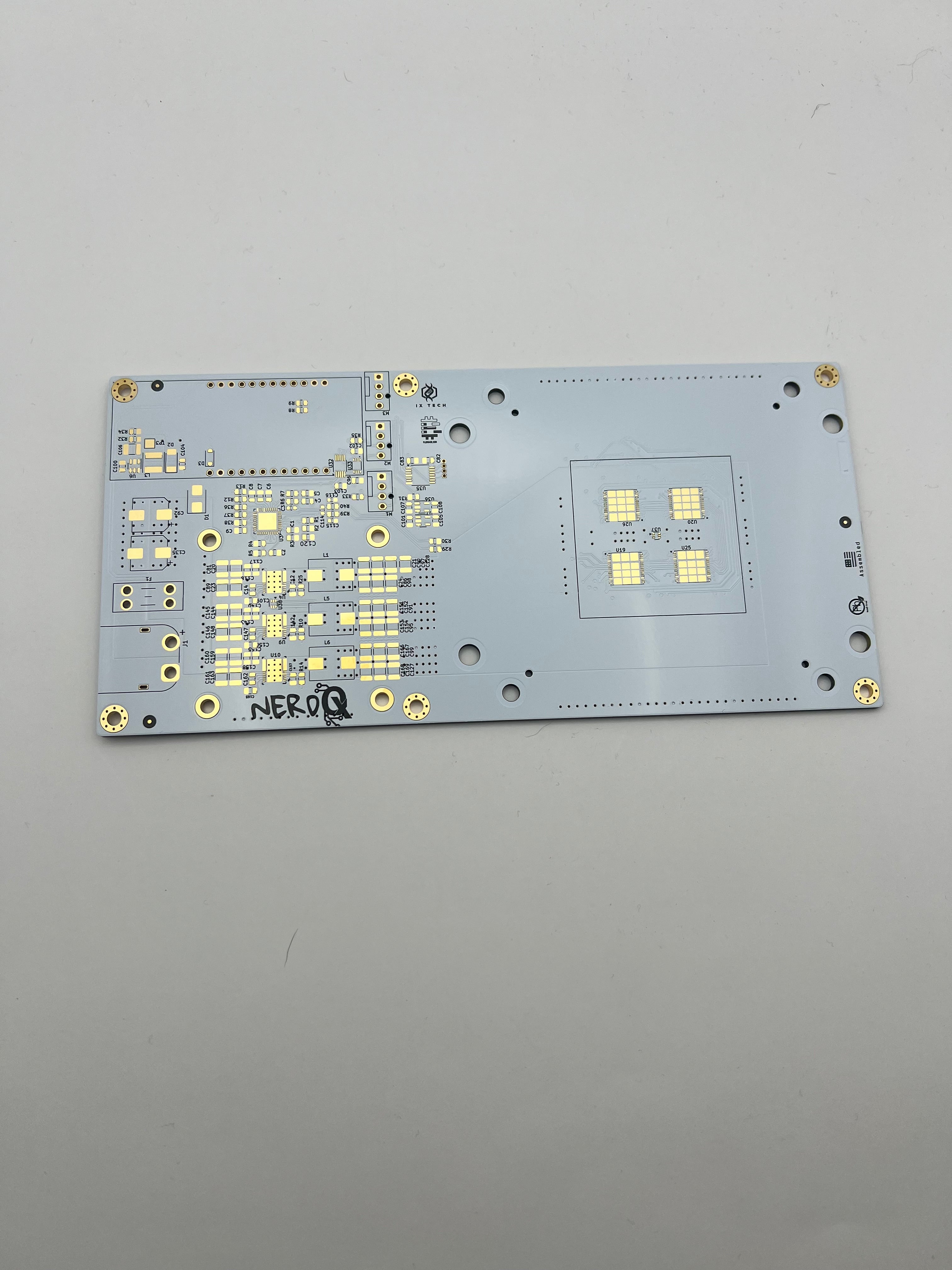

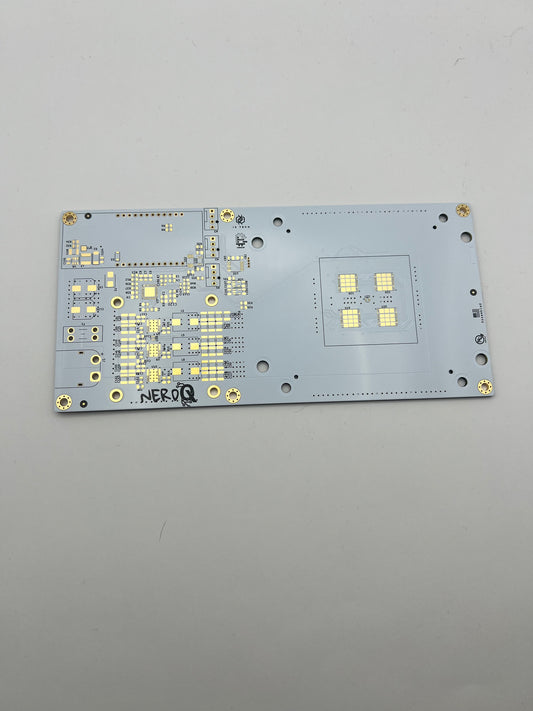

NerdQX- Bare PCB Boards (White)

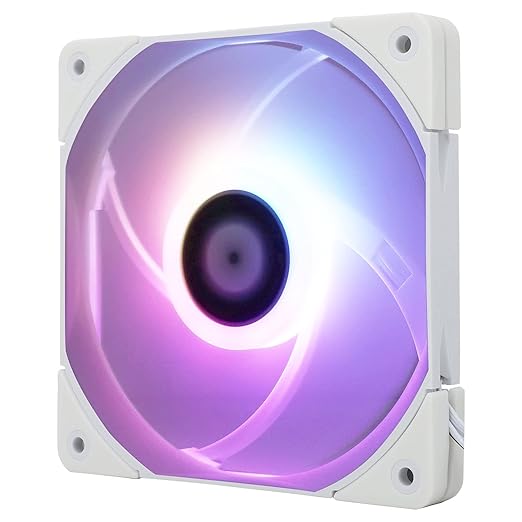

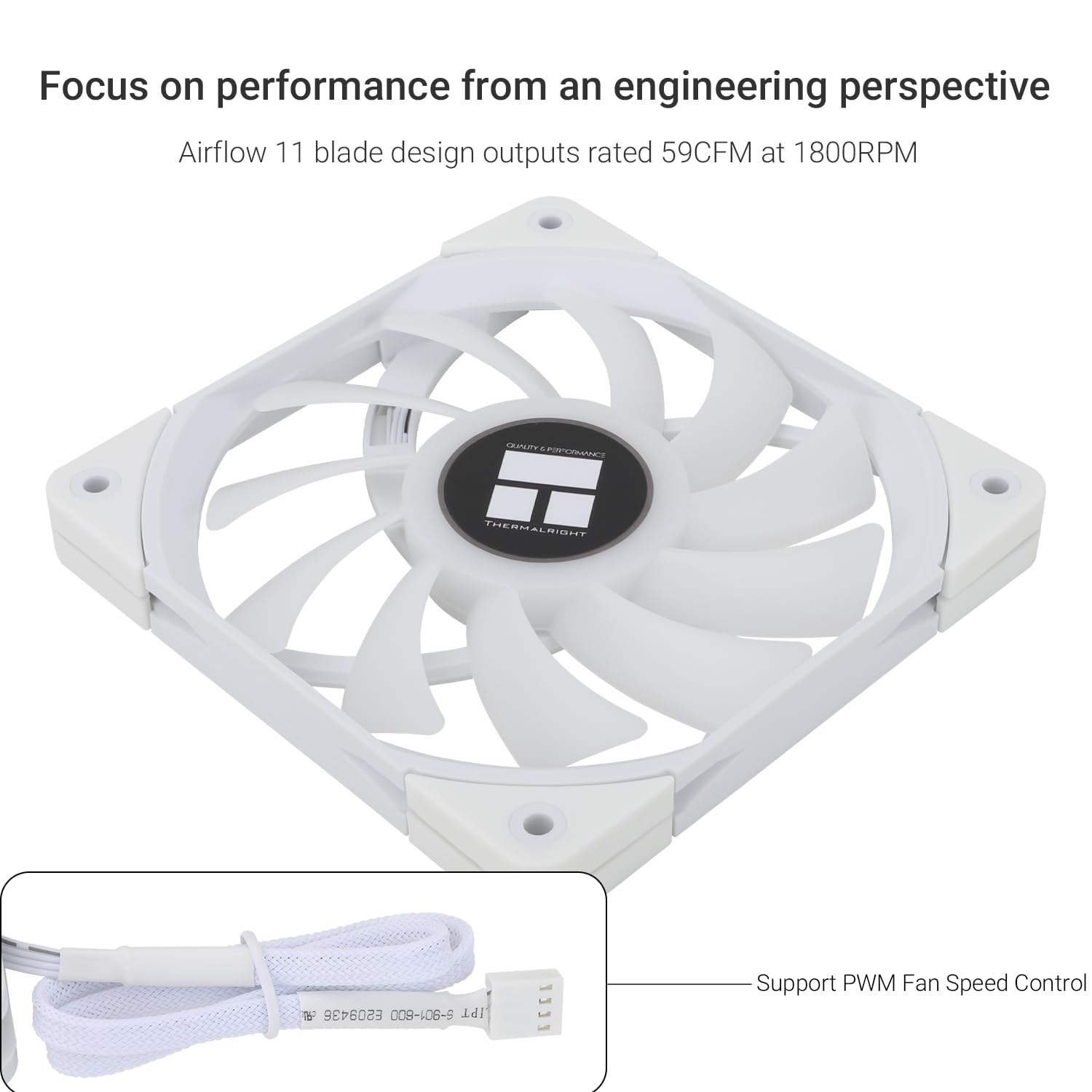

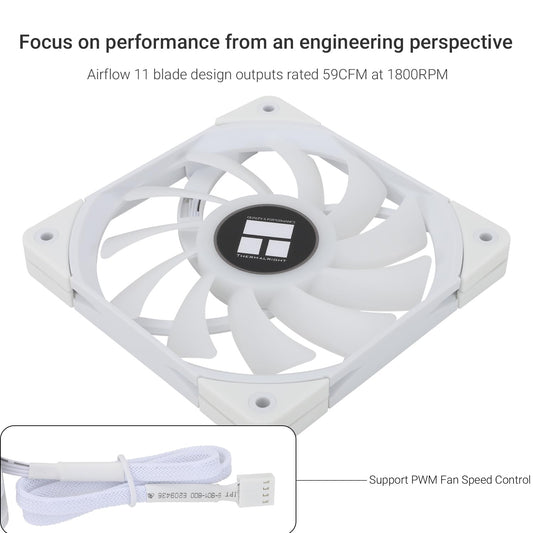

Thermalright TL-C12015W-S - 120mm Slim ARGB Fan (White)

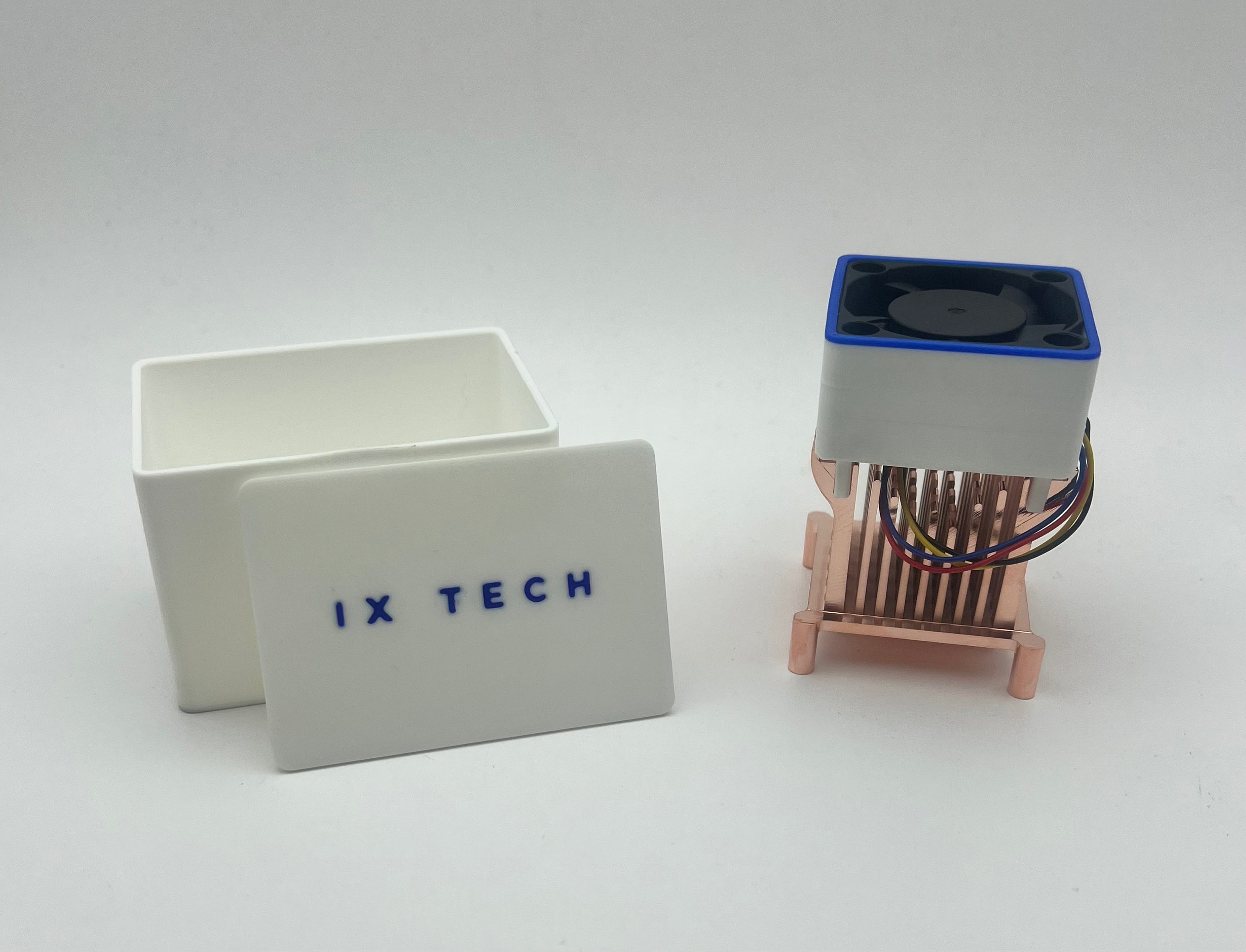

NerdQX VREG Active Cooling Kit (12V)

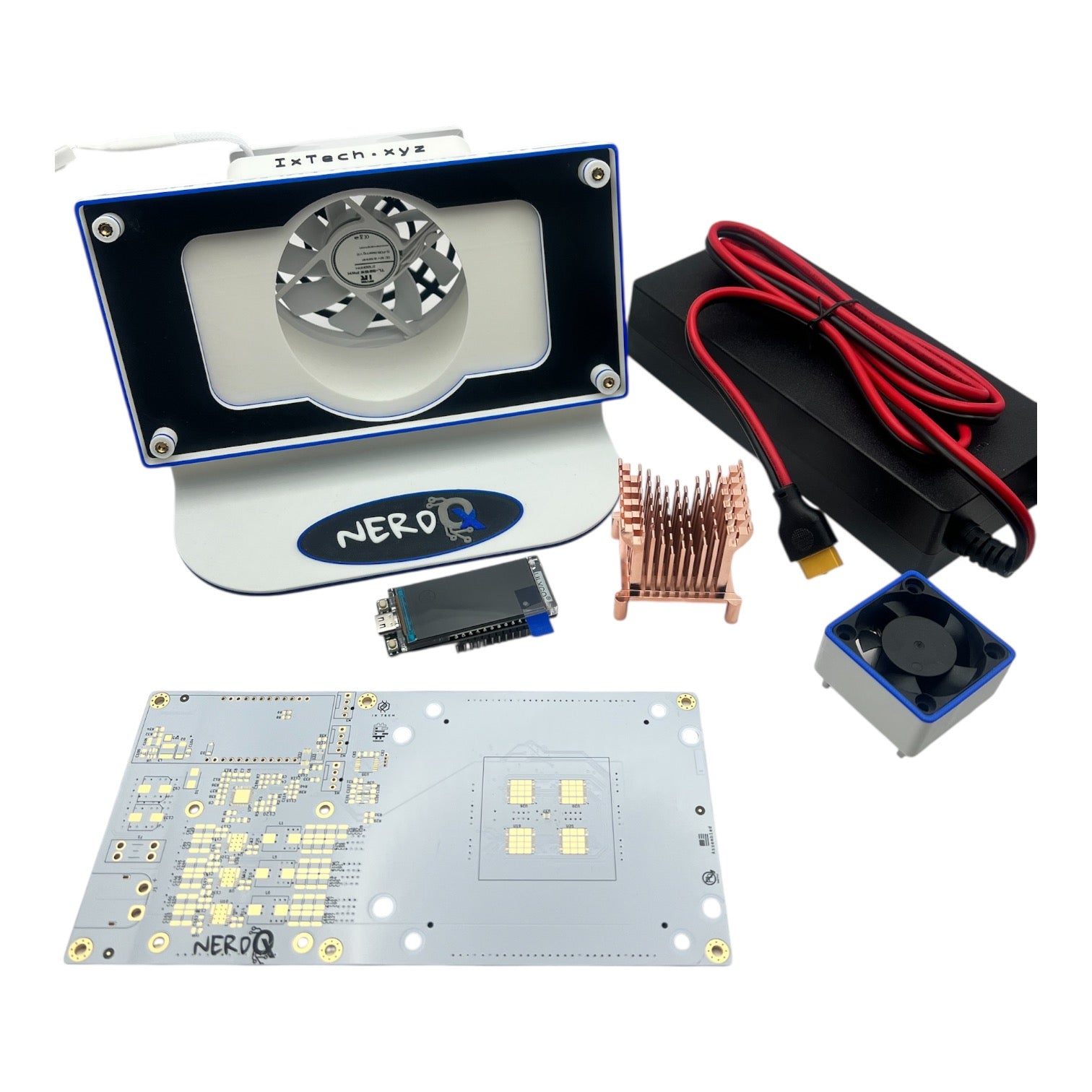

NerdQX DIY Kit - White Edition

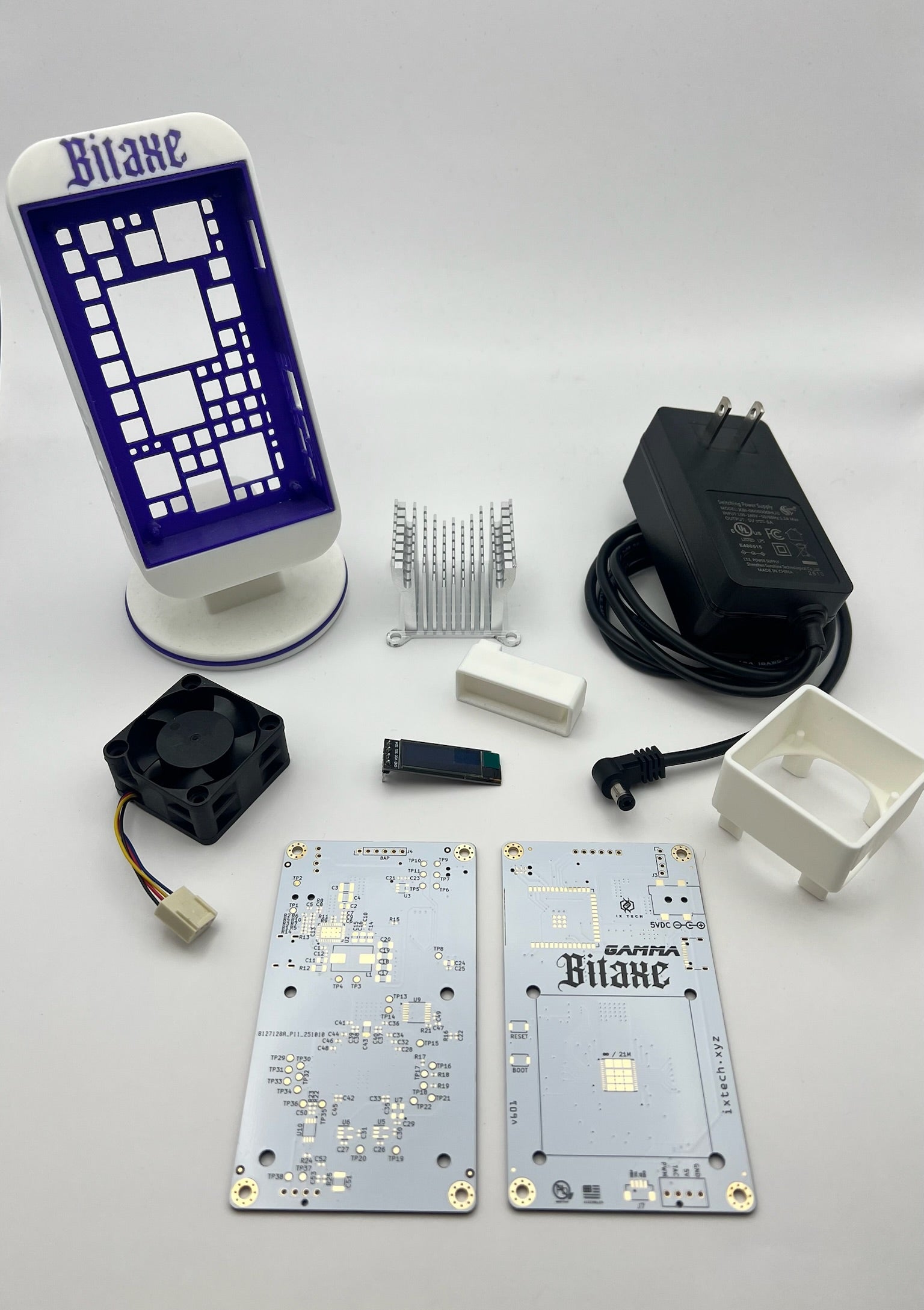

Bitaxe Gamma 601 DIY Kit - White Edition
