El Mirage Performance Heatsink for Bitaxe and Nerdaxe
El Mirage Performance Heatsink for Bitaxe and Nerdaxe

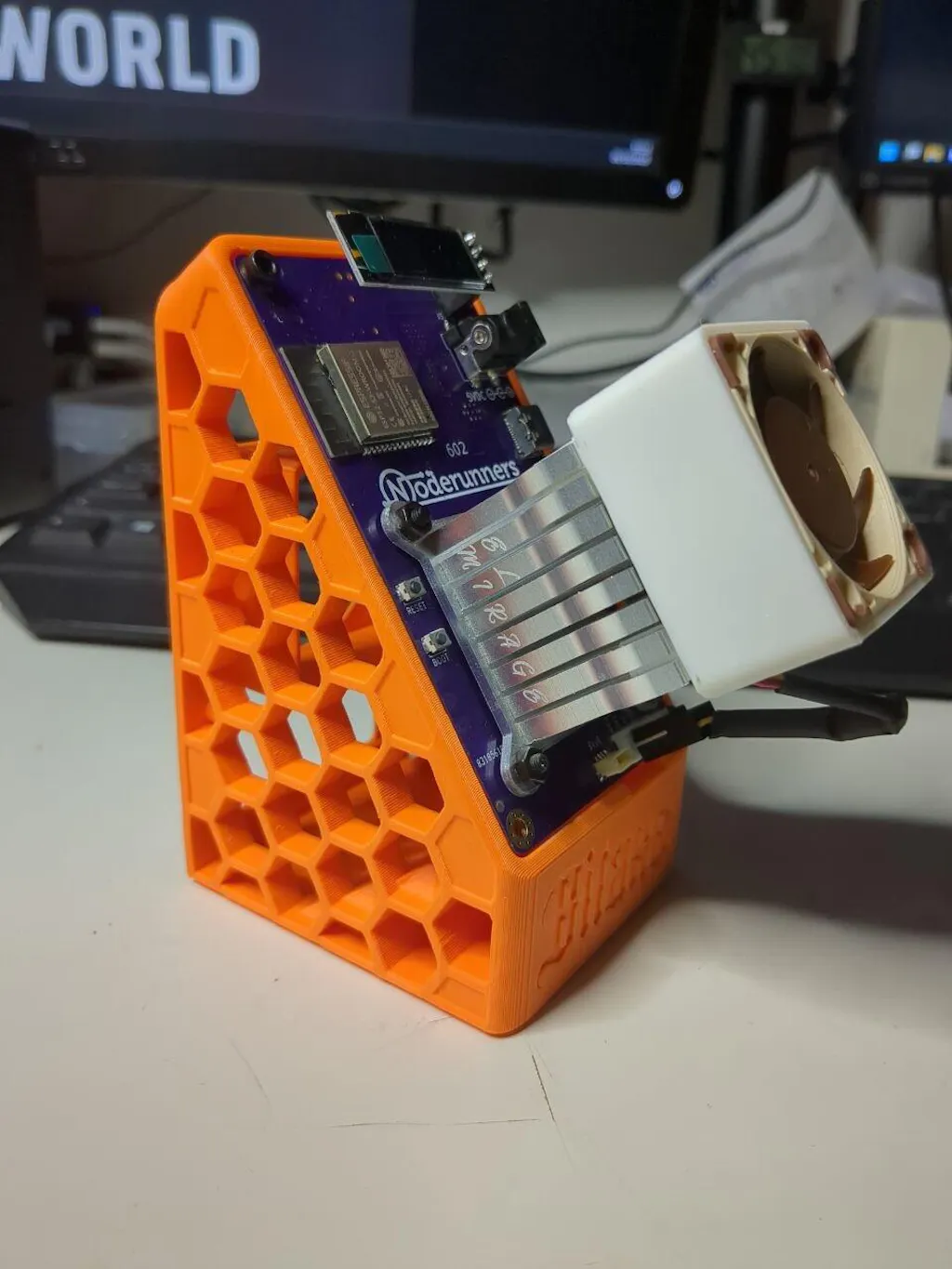

Compatible with: Bitaxe Ultra / Supra / Gamma / Gamma DUO and Nerdaxe Ultra / Gamma

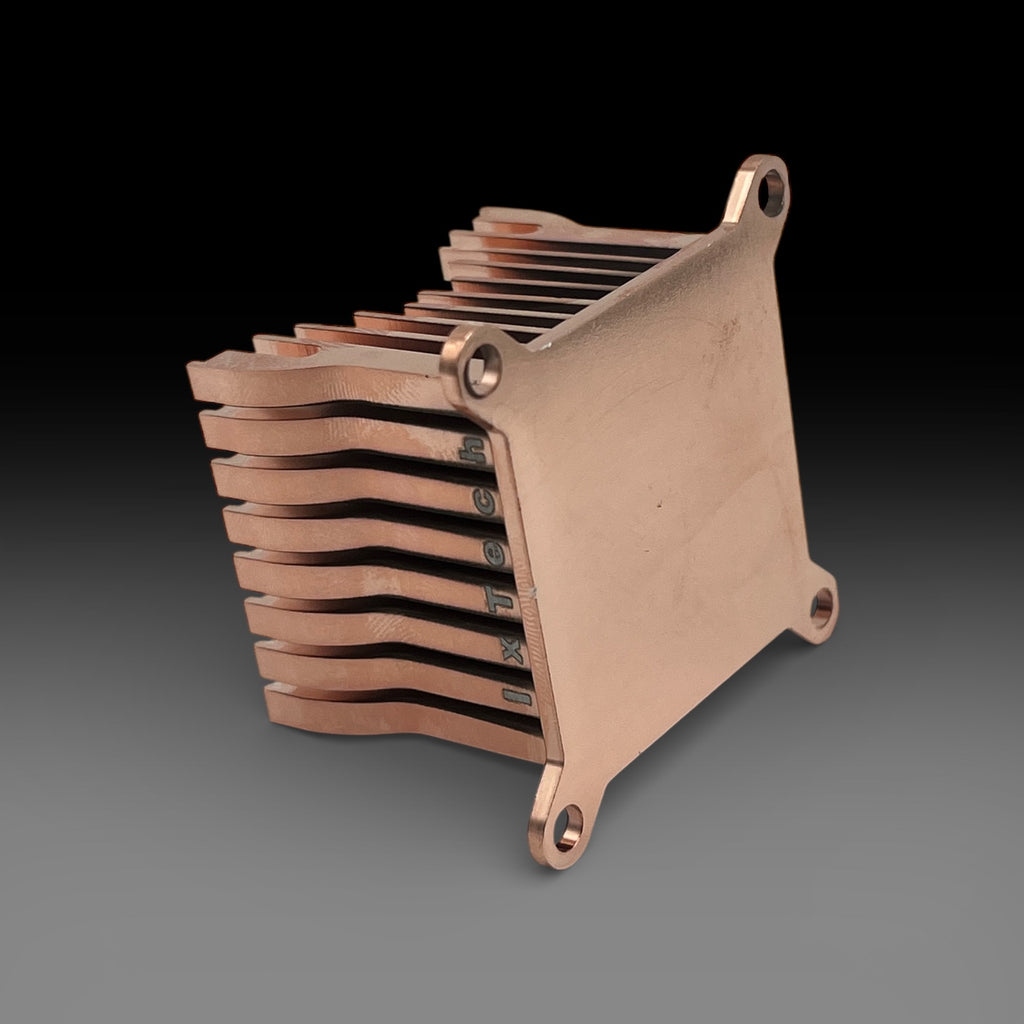

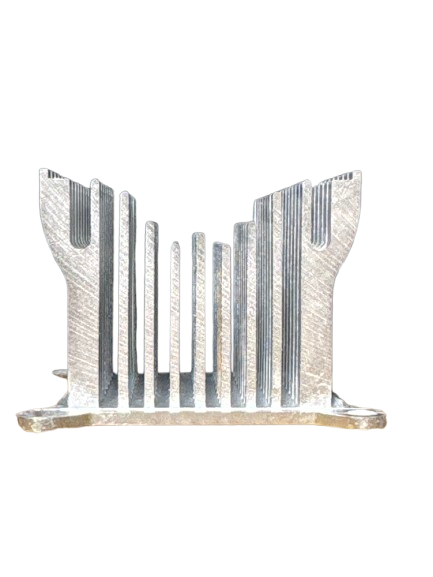

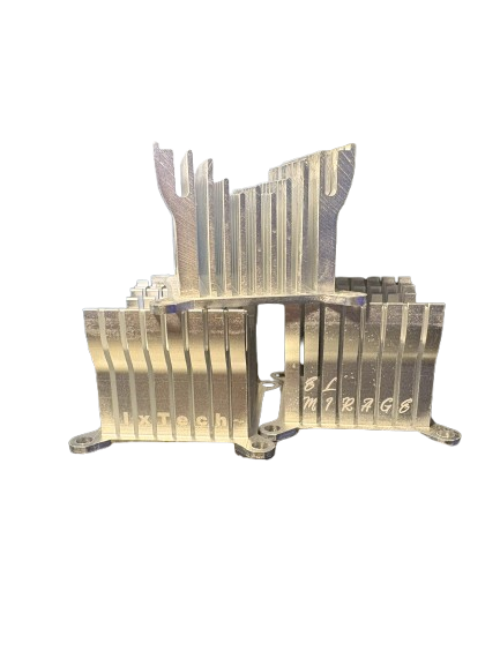

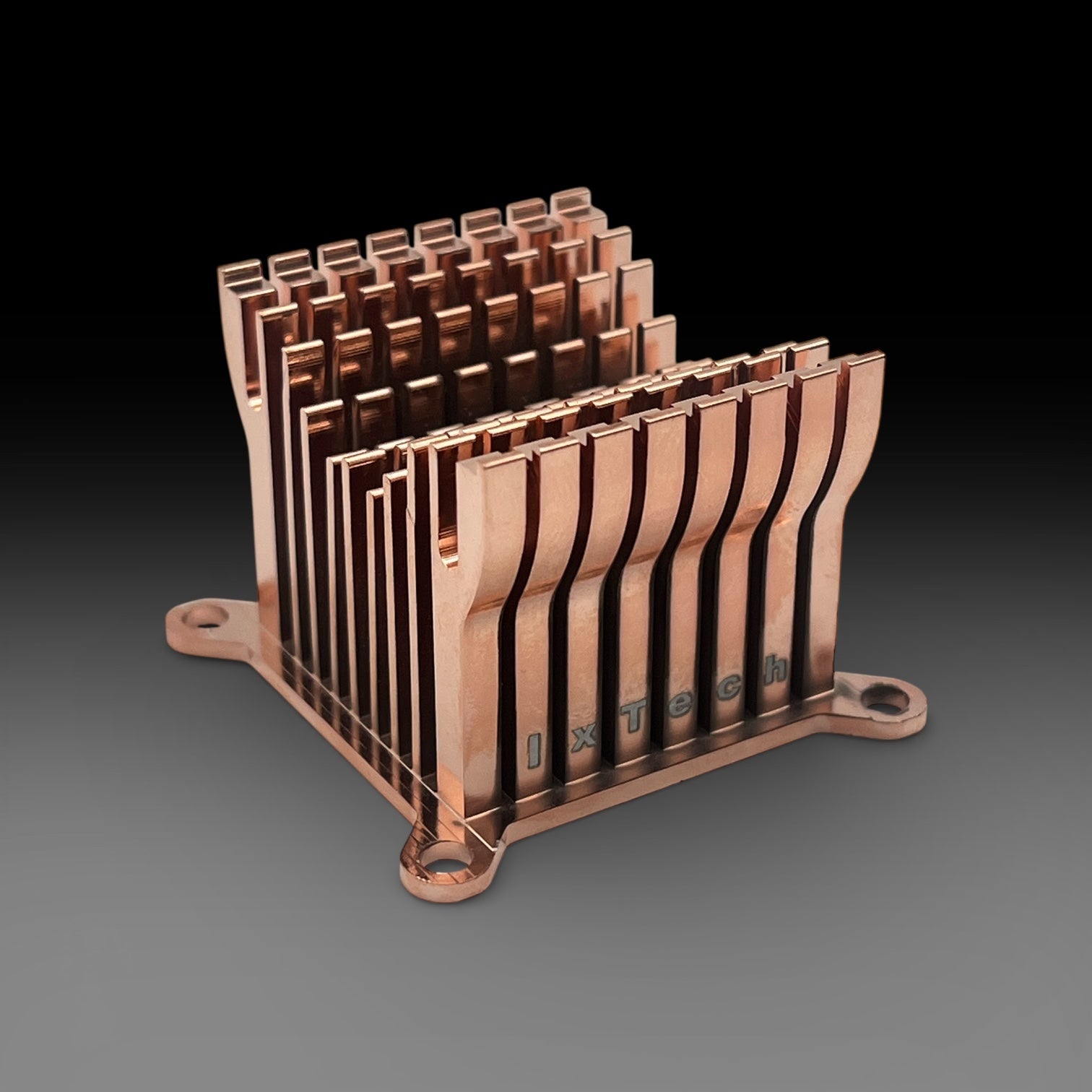

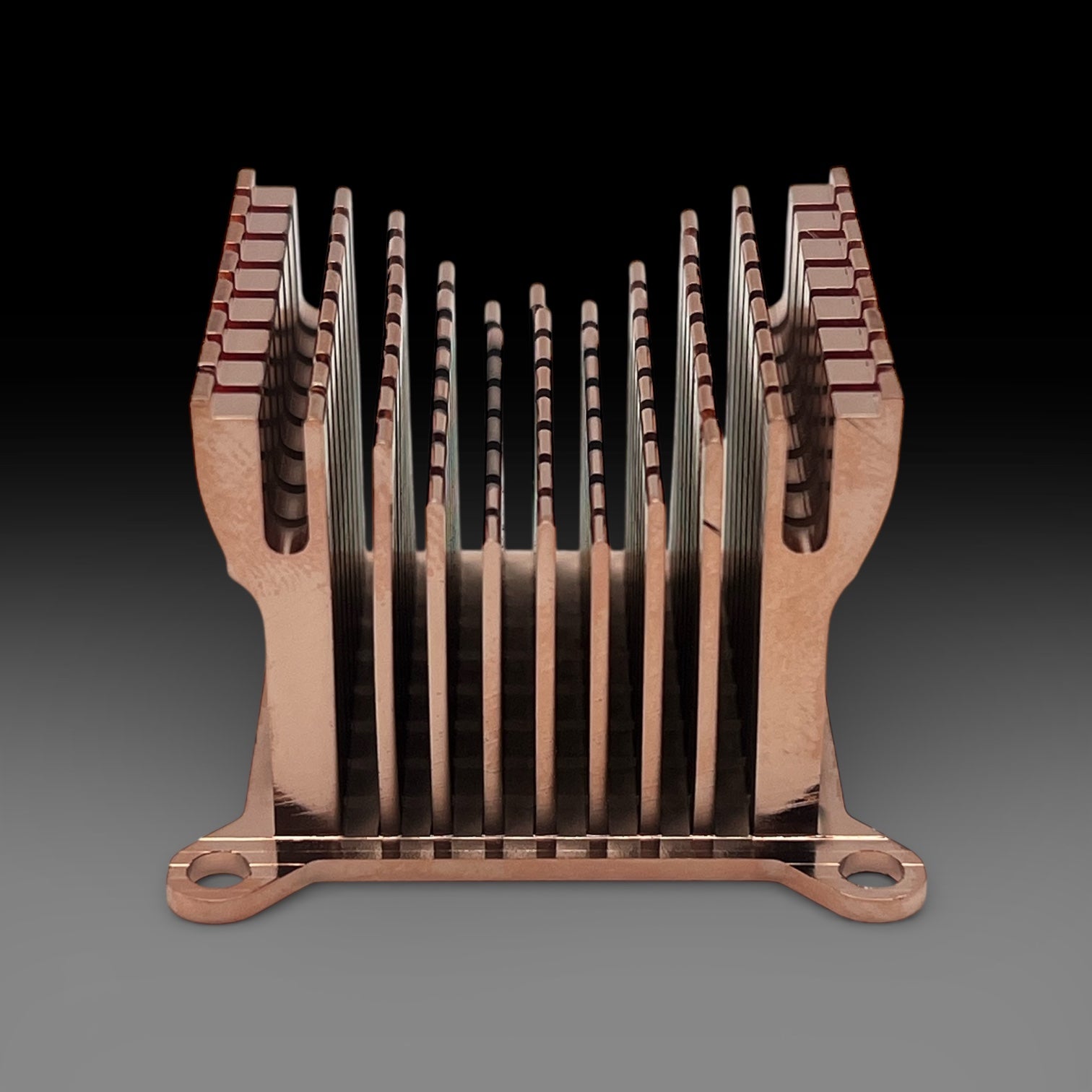

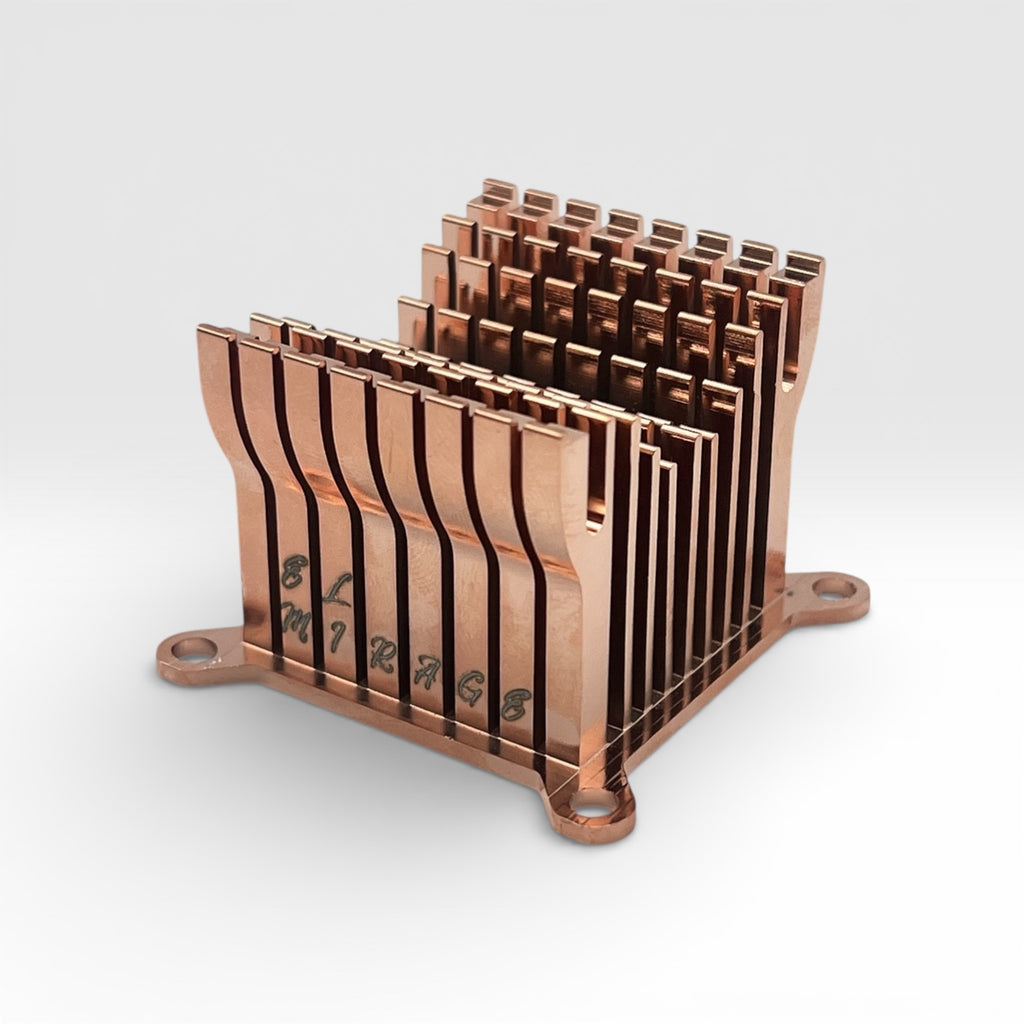

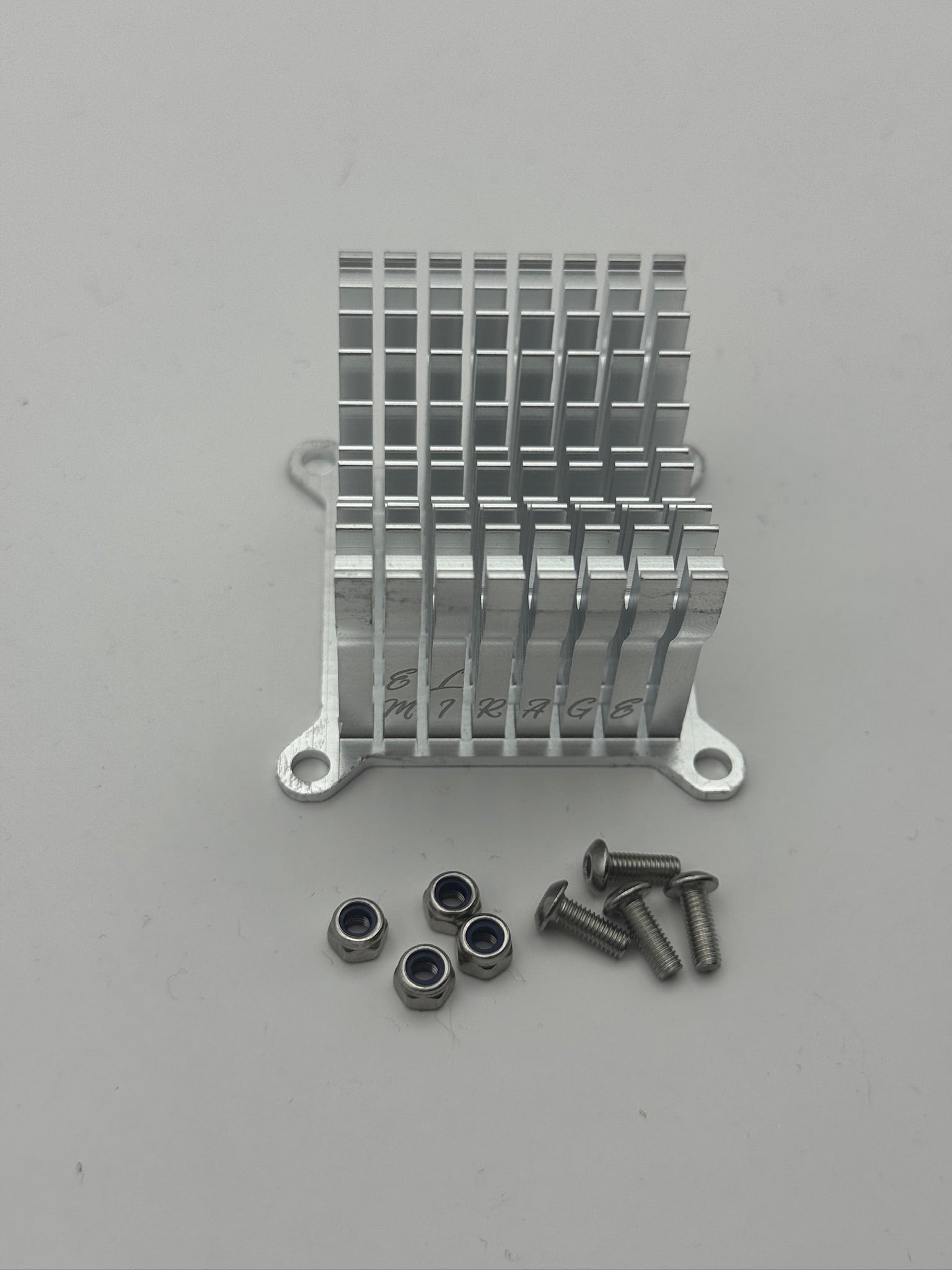

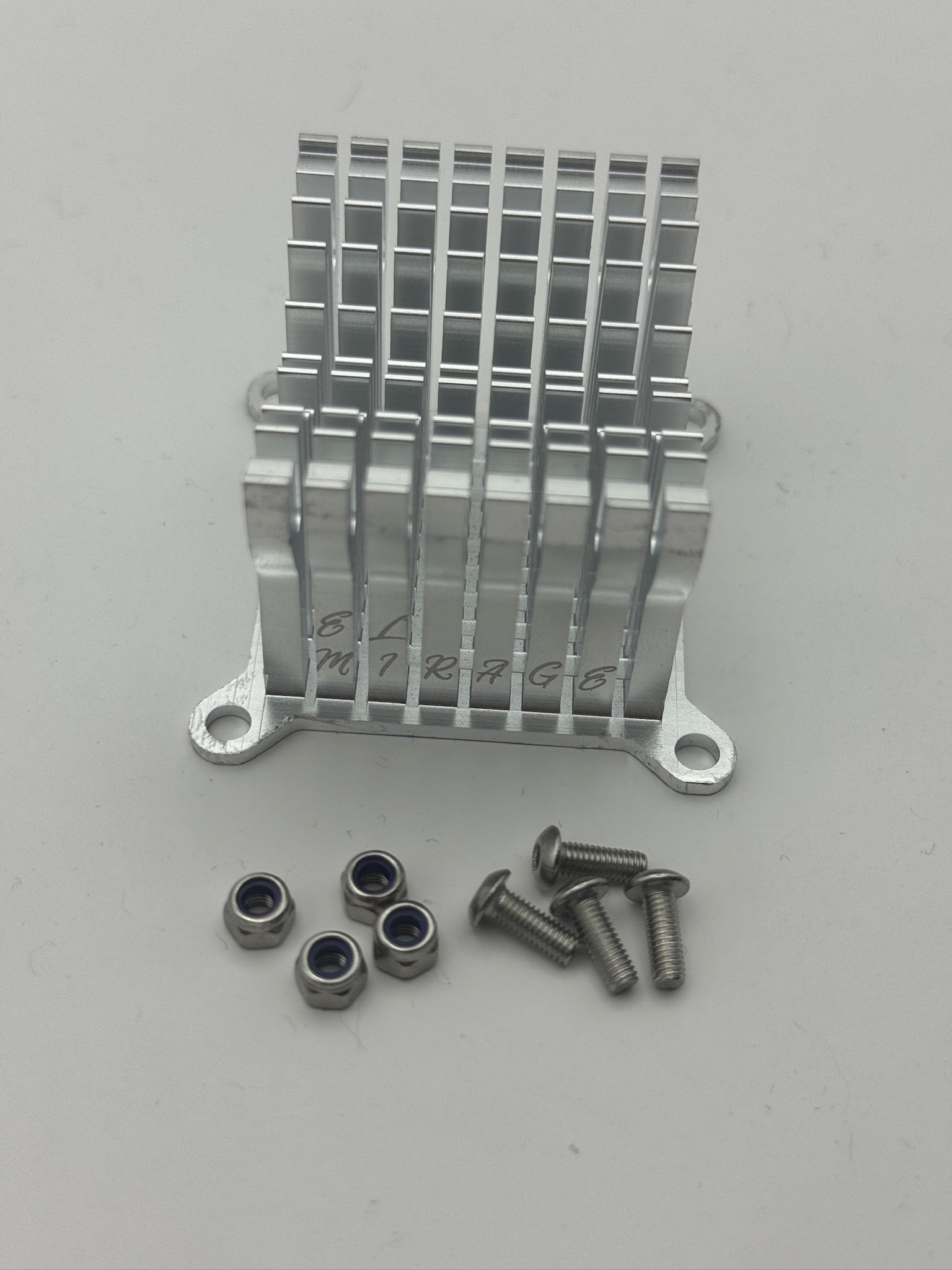

Your stock heatsink tilts under load. Two mounting points aren't enough to hold a heatsink flat against the BM1370 ASIC — and a tilted heatsink means uneven contact, hot spots, and throttled hashrate on your bitcoin miner. The El Mirage fixes this with a four-point mounting pattern (using four M3 screws) that locks flat every time, no rocking, no reseating.

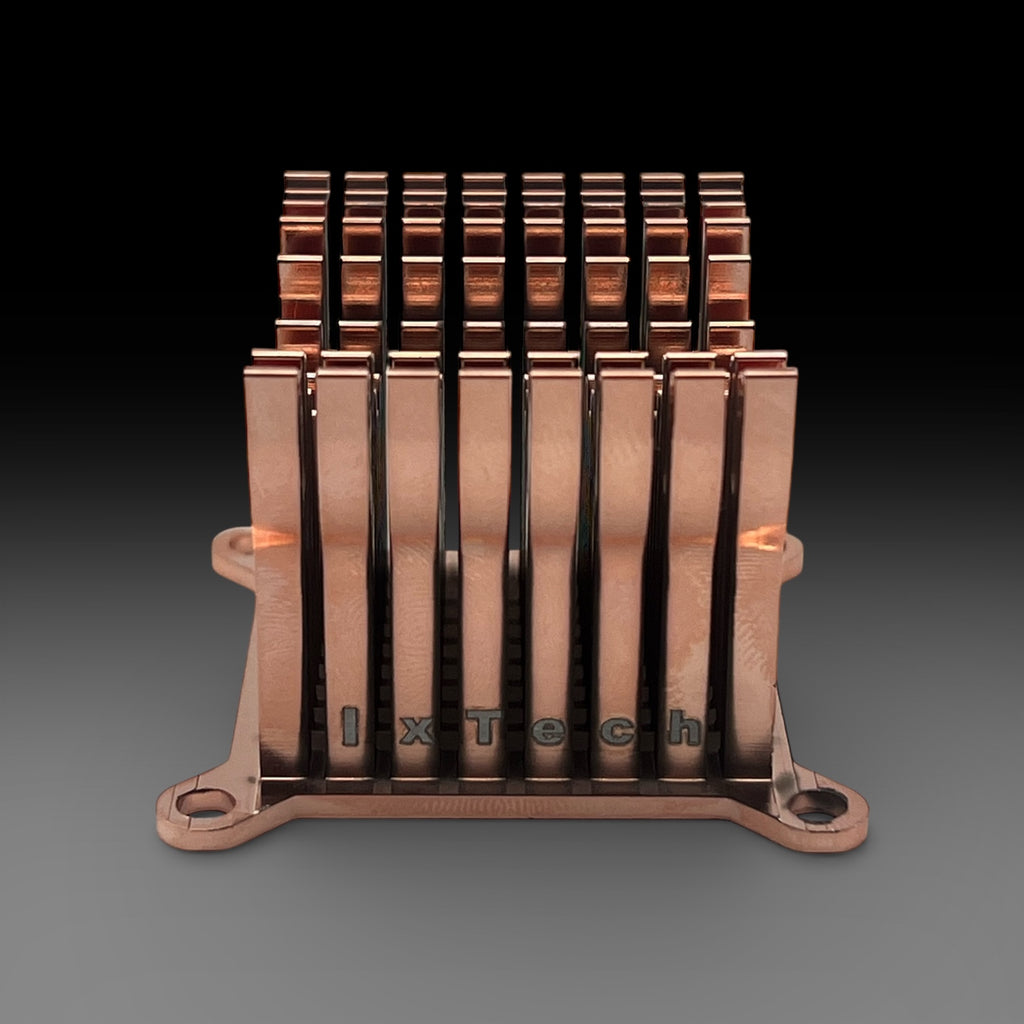

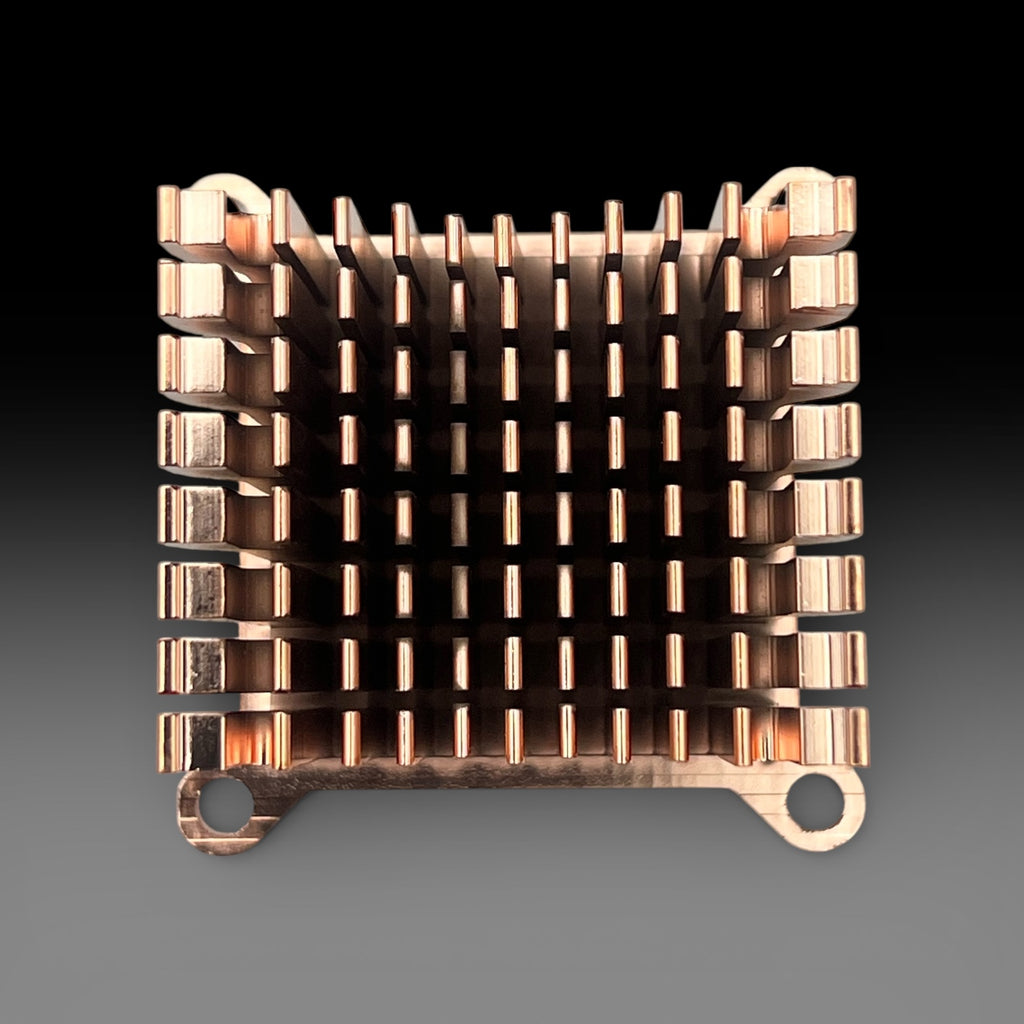

The copper-plated surface pulls heat off the chip faster than bare aluminum, keeping your Bitaxe or Nerdaxe running cooler without sacrificing the fan speed headroom you need to push higher clock speeds in AxeOS

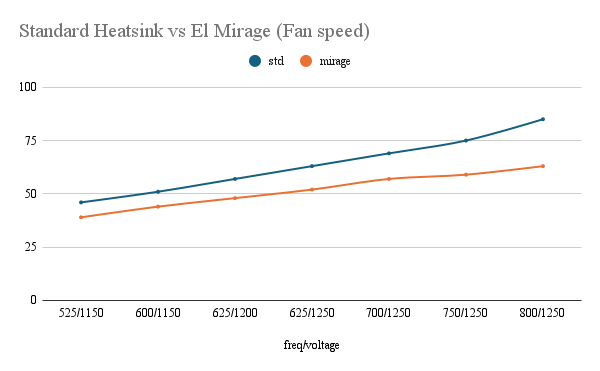

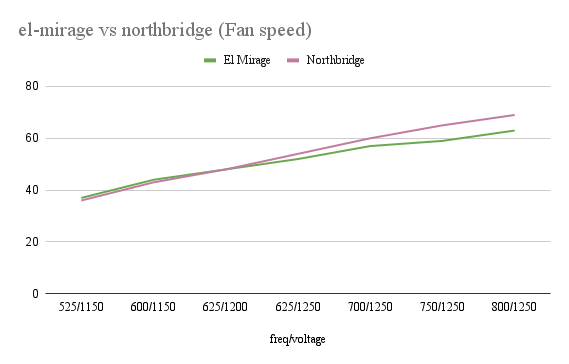

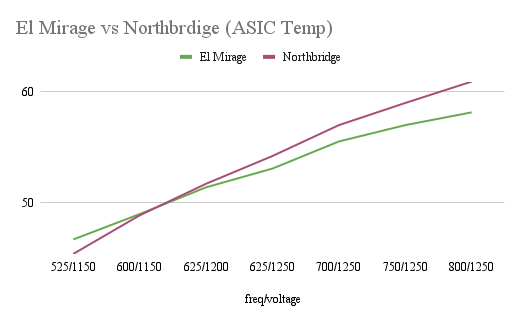

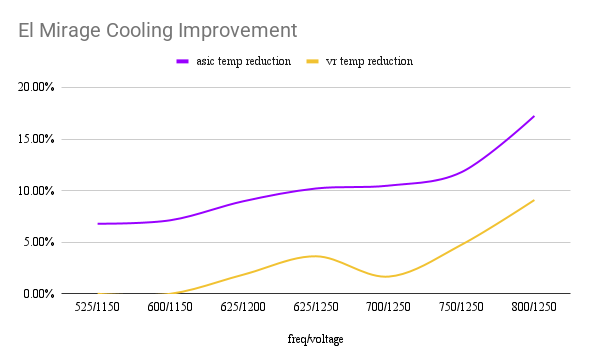

Here are testing results using one of our white Bitaxe Gamma:
| Frequency (MHz) | Voltage | ASIC Temp (°C) | VR Temp(°C) | Fan Speed |
| 525 | 1150 | 53 | 60 | 25% |
| 600 | 1150 | 56 | 68 | 27% |
| 625 | 1200 | 60 | 75 | 30% |
| 625 | 1250 | 60 | 77 | 32% |
| 700 | 1250 | 60 | 79 | 36% |
| 750 | 1250 | 60 | 82 | 40% |
| 800 | 1250 | 60 | 86 | 45% |
| 850 | 1250 | 60 | 89 | 49% |
| 900 | 1250 | 60 | 92 | 56% |
| 900 | 1300 | 60 | 95 | 68% |
Drop in. Tighten four screws. Mine cooler.

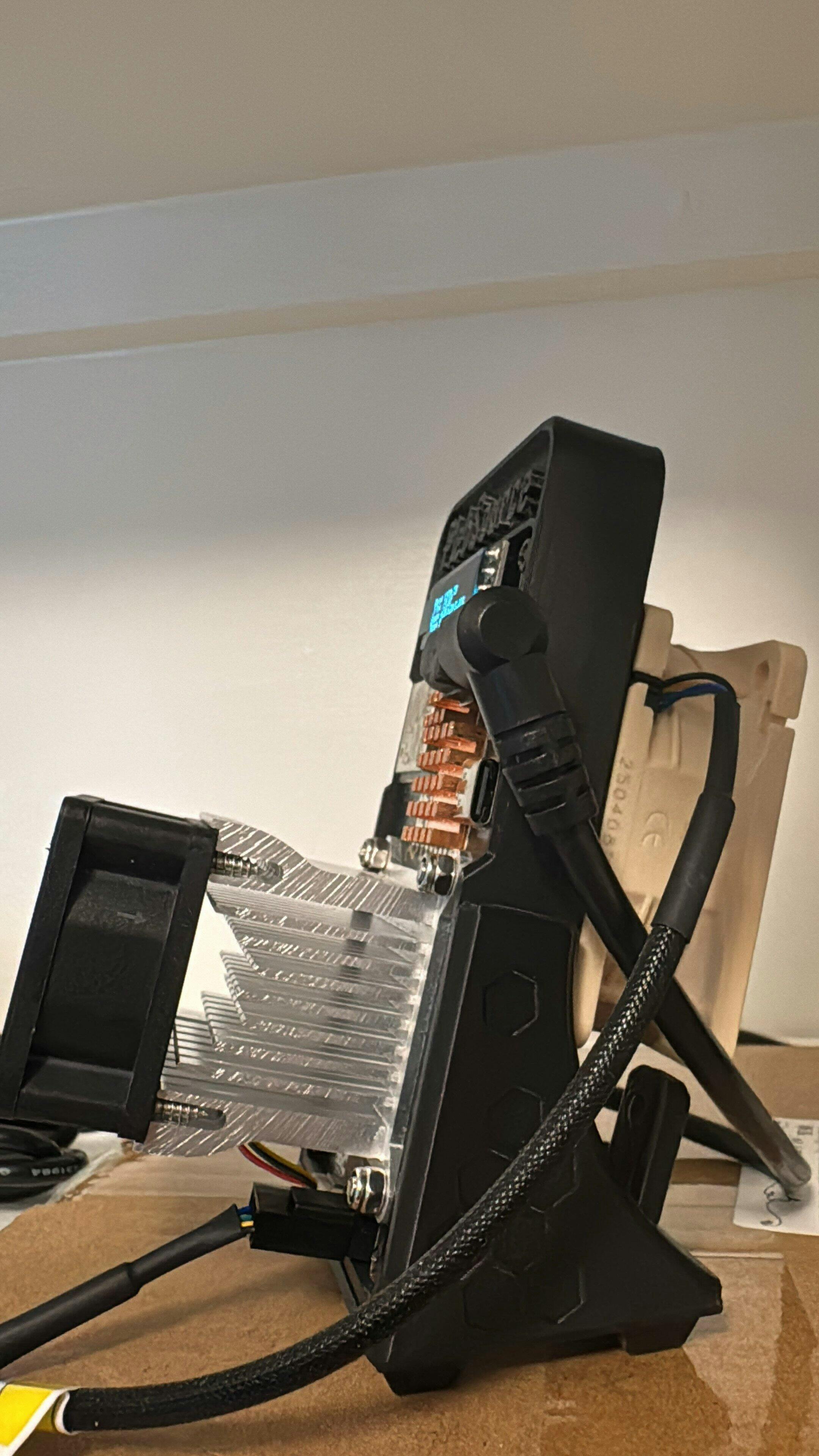

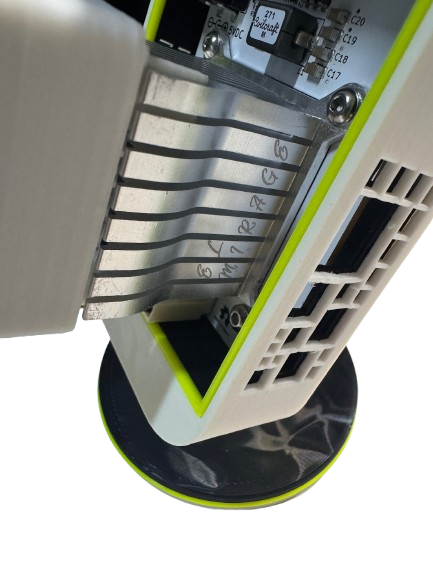

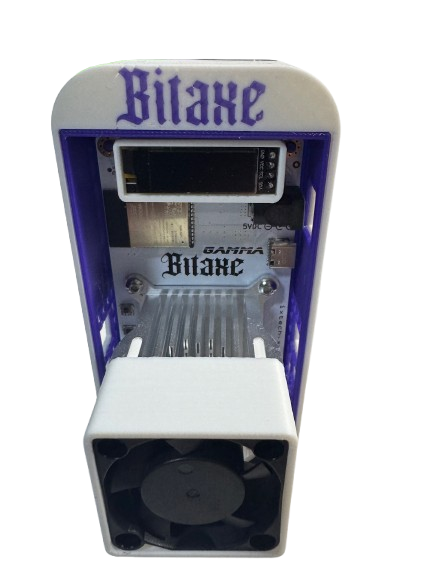

Works with both the stock fan holder and the El Mirage Fan Holder series. Thermal paste not included — pick up the Thermalright TF-7 if you need it.
Ships same week. Add to cart and clock higher.

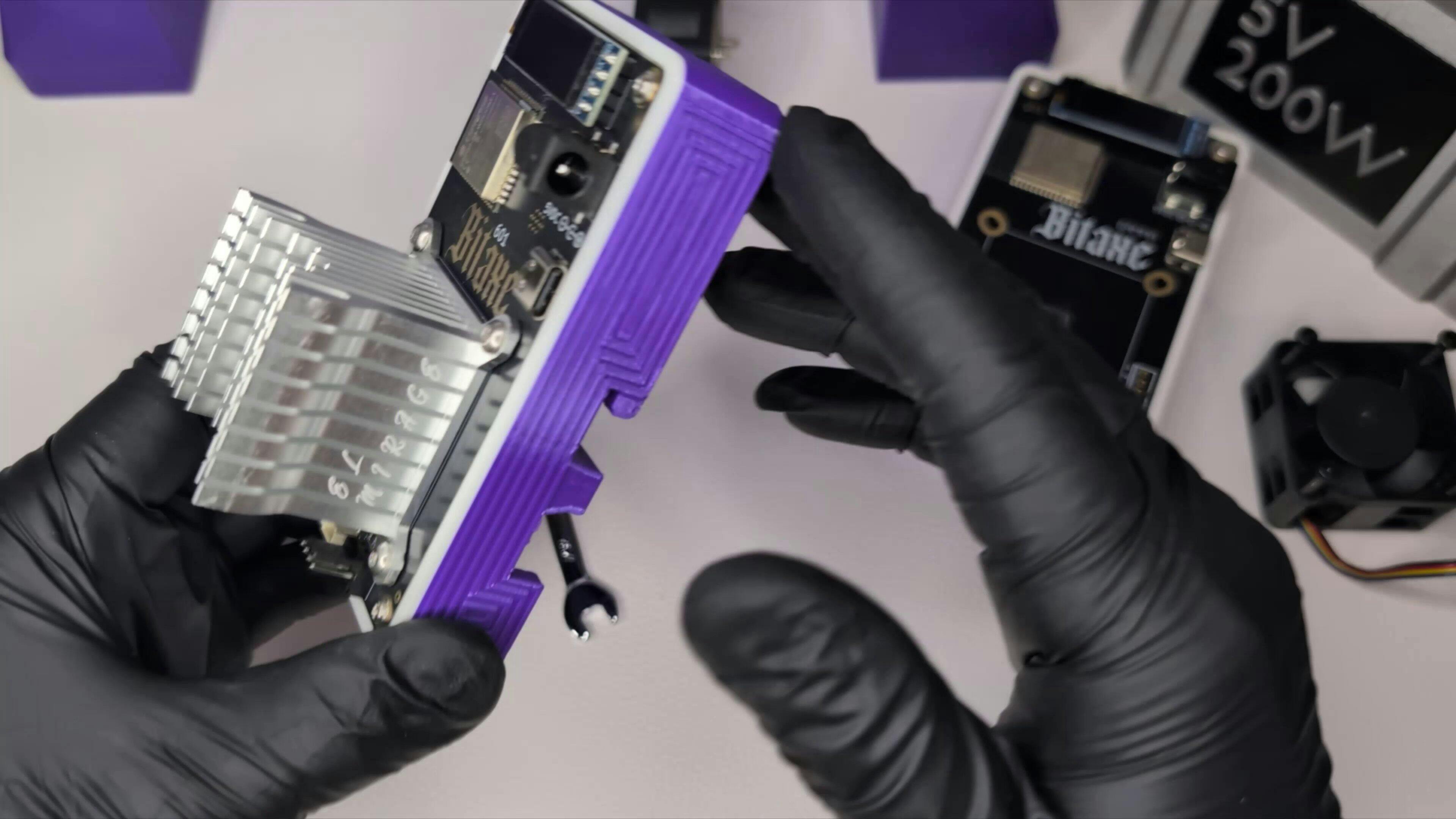

"How to" install video here: El Mirage Upgrade
Plebbase review here: El Mirage for Bitaxe
