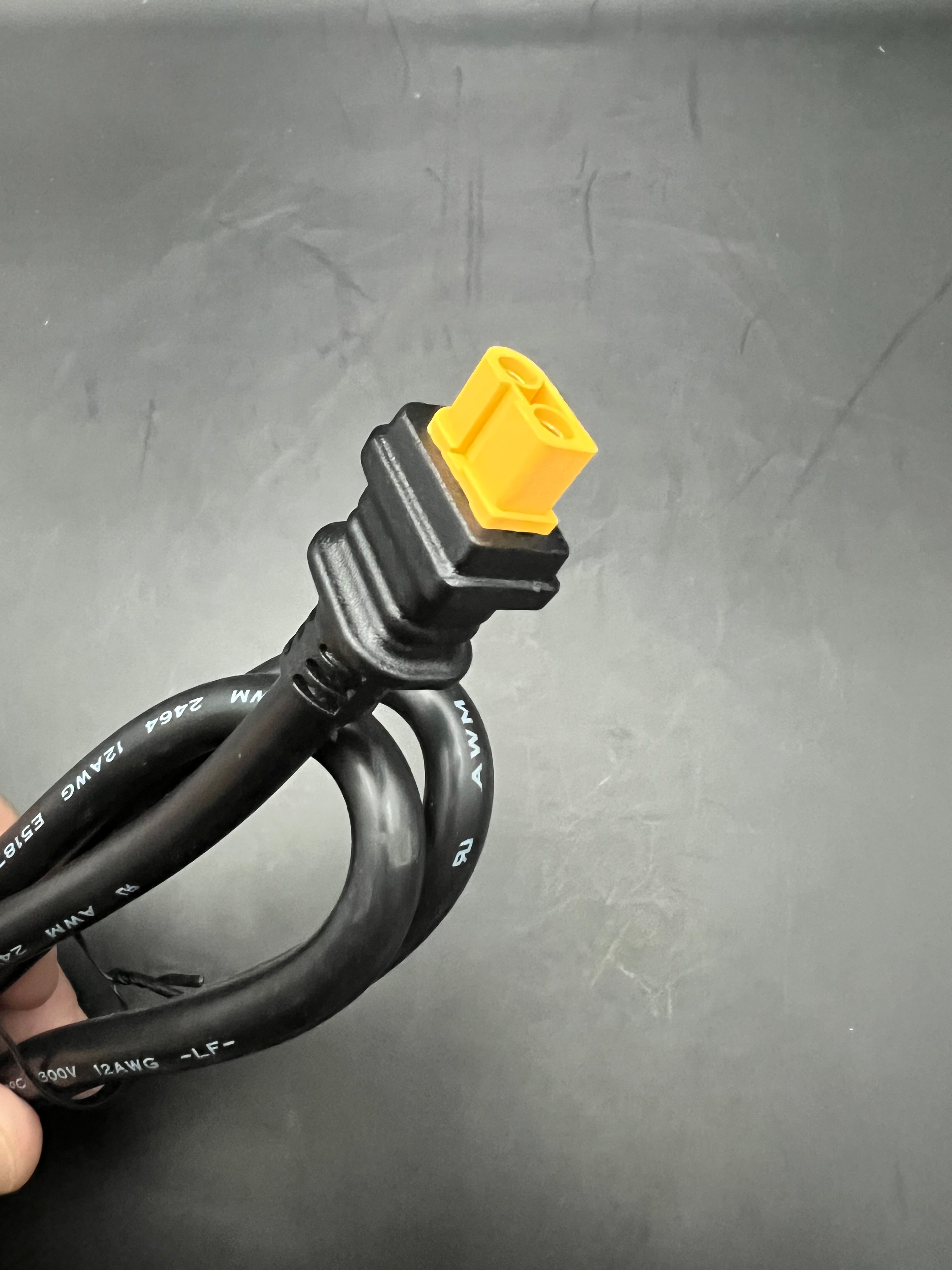

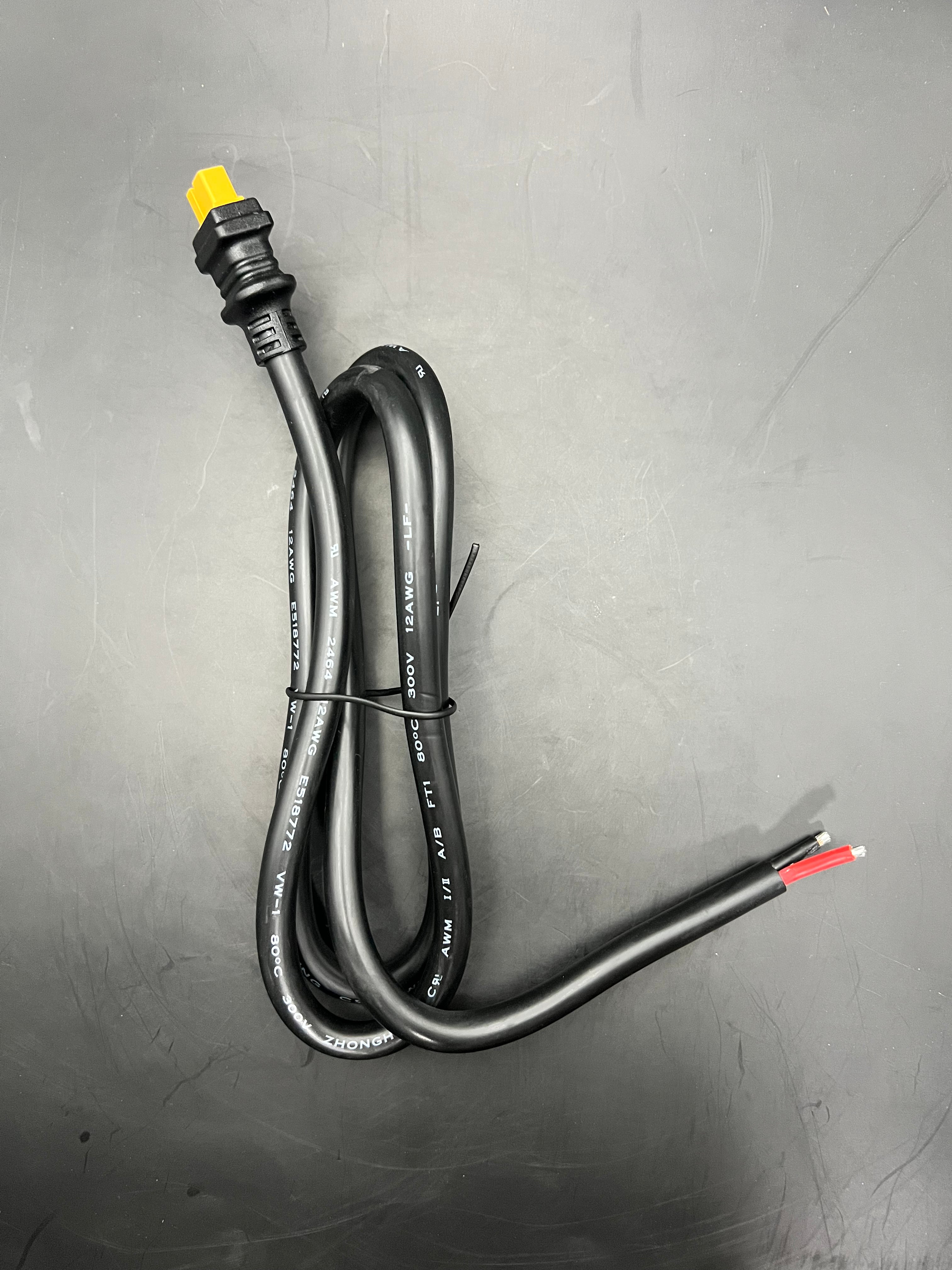

High-Current 12V DC XT60 Female Pigtail Cable (12 AWG, 1 Meter)
Deliver safe, uncompromised power to high-wattage multi-ASIC arrays with our premium 12 AWG XT60 Female to Bare Wire Pigtail Cable. Engineered specifically for power-hungry home mining rigs, cluster boards, and high-amperage 12V DC distribution, this heavy-gauge cable prevents thermal bottlenecking and line resistance when pulling high continuous currents from industrial power supplies like the Mean Well LRS and RSP series.
Quick Specifications
| Connector Type | XT60 Female (Device Side) to Bare Wire (PSU Side) |
| Wire Gauge | 12 AWG (Heavy-Duty Multi-Strand Oxygen-Free Copper) |
| Length | 1 Meter / 39.4 Inches (~3.3 Feet) |
| Voltage Rating | 12V DC Nominal (Rated up to 300V, 80°C - 105°C) |
| Current Capacity | 30A Continuous / 60A Peak (Up to 360W+ continuous @ 12V) |
| Lead Preparation | Stripped & Pre-Tinned (~6mm) for Firm Clamping |
| Polarity / Color Code | Red (Positive / V+), Black (Negative / V-) |
| Jacket Material | Flexible, flame-retardant heavy-duty matte black jacket |
Why Choose 12 AWG & XT60 for Multi-Chip Mining?
- Engineered for High-Wattage Rigs (100W–350W+): Multi-chip hardware like 6-chip or 8-chip boards pull sustained currents between 10A and 25A. Standard 16 or 18 AWG wires will overheat and drop critical voltage. Our ultra-thick 12 AWG copper core guarantees minimal resistance and stable voltage under full hashing loads.
- Genuine High-Amperage XT60 Connection: Authentic gold-plated copper contact pins withstand continuous high thermal loads, preventing pin melting, contact pitting, or accidental looseness.
- Pre-Tinned Wire Ends: Stripped and solder-tinned PSU leads prevent stray wire whiskers, ensuring clean insertion into screw-down power supply terminal blocks, WAGO lever nuts, or custom distribution blocks.
- Generous 1-Meter Length: Easily position your multi-ASIC clusters, fan ducts, and power supplies inside server racks, wire shelving, or custom test benches without cord tension.
Verified Compatibility
⚡ Supported High-Performance Mining Hardware
- Bitaxe Multi-Chip Arrays: Bitaxe Gamma Hex (6-ASIC Array)
- NerdMiner High-Output Clusters: NerdOctaxe (8-ASIC), NerdQX
- Hammer Miner Series: Hammer Thor P2, Hammer BC08
- High-draw FPV ground stations, battery distribution blocks, and 12V DC power projects requiring an XT60 Male input.
🔌 Recommended Power Supplies
- Mean Well High-Output PSUs: LRS-600-12, LRS-350-12, RSP-750-12, RSP-1000-12
- High-amperage server breakout boards & 12V industrial busbars.
Safety Notice: Multi-ASIC miners draw substantial continuous current. Always ensure screw terminals on your power supply are tightened securely to the pre-tinned leads to eliminate contact resistance.
Frequently Asked Questions
Q: Why do I need 12 AWG instead of 16 AWG for boards like the Gamma Hex or NerdOctaxe?
A: Multi-chip miners such as the Bitaxe Gamma Hex (6 ASICs) or NerdOctaxe (8 ASICs) consume significantly more power (often 100W to 250W+) than single-chip miners. A 12 AWG cable handles up to 30A continuous with near-zero voltage drop, protecting your chips from under-voltage resets and hash throttling.
Q: Is this compatible with single-chip miners like the standard Bitaxe GT or NerdQaxe?
A: Standard single-chip miners generally use smaller XT30 connectors. Please check your board: if it has an XT60 port, this cable is the perfect heavy-duty match. If your board has an XT30 port, use our 16 AWG XT30 pigtail cable.
Q: Which wire corresponds to positive and negative?
A: The Red wire is Positive (+ / V+) and the Black wire is Negative (- / V- / GND). The XT60 housing is also keyed and marked with (+) and (-) to prevent reverse polarity connection.
