Clean, Low-Profile Power for 5V Desktop Mining Rigs Upgrade your power distribution and eliminate cable strain with our heavy-duty 1-Meter 5.5 x 2.1mm 90-Degree Barrel Jack Male Pigtail. Specially designed for the DIY electronics builder and home Bitcoin miner, this premium 16 AWG power cable is the perfect way to wire your Bitaxe miners directly to a dedicated 5-volt power supply like the Mean Well LRS-50-5.

The right-angle (90-degree) connector allows for flush, low-profile plugging that saves space on tight workbench setups and mining racks.

Key Features

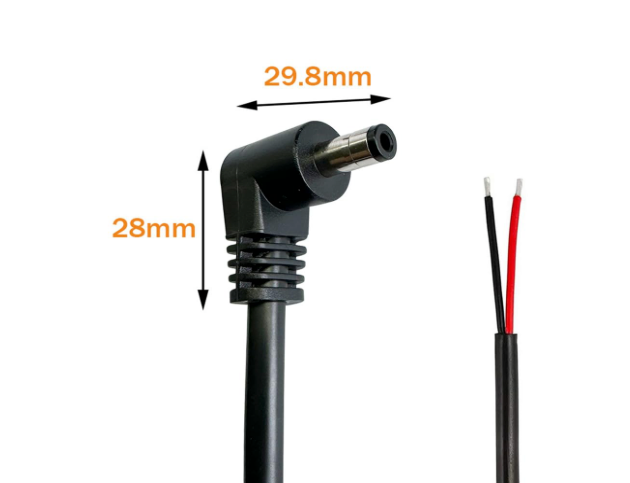

  • Low-Profile 90° Connector: The right-angle 5.5 x 2.1mm male barrel plug reduces cable bending and fits seamlessly into tight spaces, preventing wear and tear.

  • Ready for Quick Install: Ends are pre-stripped and tinned (approx. 5mm), making them instantly ready to land securely on screw terminals or distribution blocks.

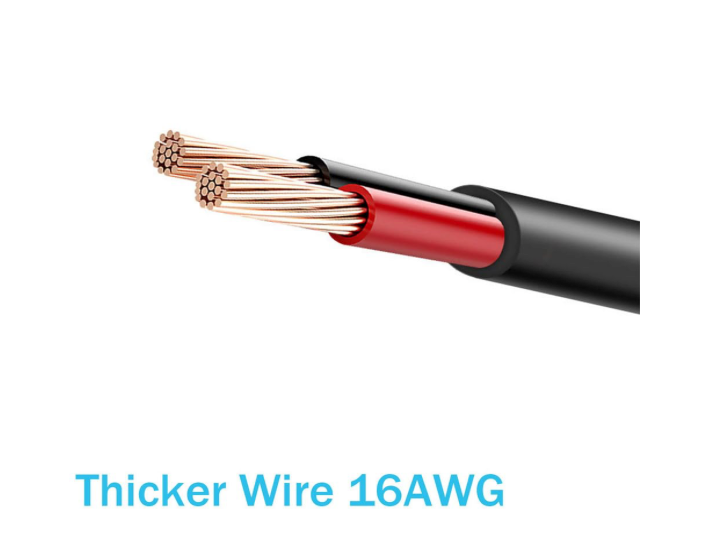

  • Heavy-Duty 16 AWG Wire: Uses robust UL2464 stranded copper (red and black) capable of safely handling up to 5 amps continuous current with minimal voltage drop or heat.

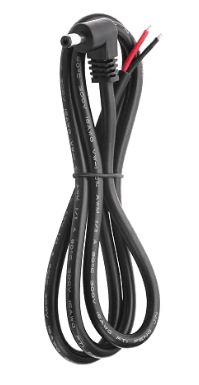

  • Generous 1-Meter Length: Gives you ~39.4 inches of slack, wrapped in a flexible black PVC jacket, for clean, professional cable routing across your shelves.

  • Foolproof Polarity: Center-positive barrel jack with color-coded internal wires (Red = V+, Black = V-) ensures you always wire your setup correctly.

Compatibility

Engineered for safe and efficient 5V DC power distribution, including:

  • Bitaxe Miners (Any accepting 5.5 x 2.1mm center-positive input)

  • Mean Well Power Supplies (Highly recommended: LRS-50-5)

  • Note: Ring or fork terminals are not included. Please source terminals that fit your specific power supply or distribution block separately.

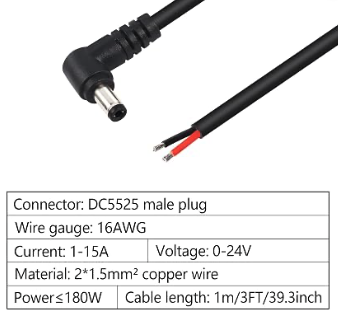

Technical Specifications

  • Connector Type: DC Male Barrel Plug (Outer: 5.5mm | Inner: 2.1mm)

  • Orientation / Polarity: 90-Degree Right Angle | Center Positive

  • Length: 1 Meter (39.4 inches)

  • Wire Gauge: 16 AWG (Two-conductor Stranded Copper)

  • Voltage Rating: 5V DC Nominal (Rated 300V / 80°C per UL2464)

  • End Type: Stripped & Tinned Leads (~5mm)

  • Dimensions: 5" x 2" x 1" | Weight: 0.2 lbs
